BZX79C24
24V 500mW Zener diodes in DO-35 package
Manufacturer： ['taiwan-semiconductor', 'freescale', 'nxp', 'onsemi', 'fairchild', 'micro-commerical-co', 'rochester']
series introduction
The BZX79C24 Series is a robust line of Zener diodes designed for voltage regulation and signal clamping applications, renowned for their high stability, reliability, and precise voltage characteristics. These diodes feature a nominal Zener voltage of 24 volts, making them particularly suitable for applications that require a consistent reference voltage or over-voltage protection. Utilizing a planar construction, the BZX79C24 Series offers low impedance and minimal leakage current, ensuring efficient performance even in high-frequency circuits.
One of the key features of the BZX79C24 Series is its wide range of power dissipation capabilities, with a maximum power rating of 1 watt. This allows these diodes to effectively handle transient voltage spikes while maintaining stable operation under varying load conditions. The Zener voltage tolerance is typically within ±5%, providing designers with a reliable component for precision voltage regulation in various electronic circuits. The thermal stability of the BZX79C24 Series is further enhanced by its low thermal resistance, ensuring that the diode remains cool during operation, even under high load conditions.
The design characteristics of the BZX79C24 Series include a compact DO-41 package, which not only facilitates easy integration into printed circuit boards (PCBs) but also enhances overall thermal management. This makes the BZX79C24 an excellent choice for space-constrained applications where performance cannot be compromised.
Typical applications for the BZX79C24 Series span a wide range of industries, including consumer electronics, telecommunications, and automotive systems. They are commonly used in voltage regulation circuits, power supplies, and as protection devices for sensitive components against over-voltage conditions. With their reliable performance and ease of use, the BZX79C24 Zener diodes are ideal for engineers seeking to enhance the durability and efficiency of their electronic designs.
Images for reference

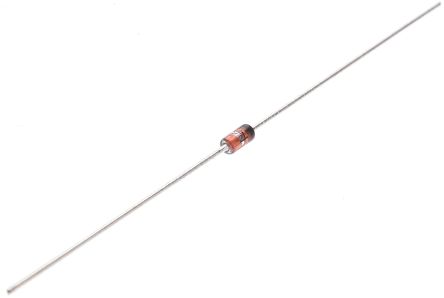

DO-35
Image Preview
Image Preview
