BZX585-B6V8

NXP single zener diodes in SOD-523 form

Manufacturer: ['nxp', 'nexperia']

series introduction

The BZX585-B6V8 series is a range of low-power Zener diodes designed to provide reliable voltage regulation in compact electronic circuits. Renowned for their precision and stability, these diodes feature a nominal Zener voltage of 6.8V, making them an ideal choice for applications requiring consistent voltage clamping and regulation. The BZX585-B6V8 series utilizes a reliable silicon technology, which ensures low noise and minimal leakage current, thereby enhancing the overall efficiency of electronic systems.

A key characteristic of the BZX585-B6V8 series is its wide operating temperature range, typically from -55°C to +150°C. This feature ensures that the diodes can perform effectively in a variety of environmental conditions, making them suitable for use in both consumer electronics and industrial applications. The series is designed with a robust construction that offers high reliability and durability, which is essential for applications that demand long-life components.

The BZX585-B6V8 series is particularly well-suited for voltage regulation in power supplies, providing stable reference voltages in various electronic circuits, including linear regulators and voltage clamping applications. Their ability to maintain a constant output voltage under changing load conditions makes them ideal for protecting sensitive components from voltage spikes. Additionally, these Zener diodes find extensive use in signal-level clamping and as surge protectors, safeguarding circuits from transient voltages.

In summary, the BZX585-B6V8 series offers a combination of compact design, stable performance, and high reliability, making it a preferred choice among engineers and designers. Its versatile applications span consumer electronics, automotive electronics, telecommunications, and industrial automation, where dependable voltage regulation is critical. With their excellent electrical characteristics and temperature stability, the BZX585-B6V8 series diodes contribute significantly to the efficiency and longevity of modern electronic designs.

Images for reference

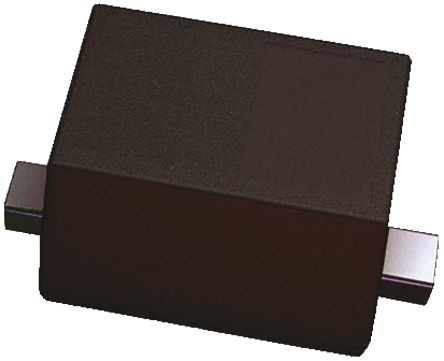

SOD-523, SC-79, 1-1G1A

SOD-523, SC-79, 1-1G1A

Image Preview

Image Preview

Image Preview

Image Preview

Datasheets

Partlist

BZX585-B6V8
BZX585-B6V8,115
BZX585-B6V8,135
BZX585-B6V8135
BZX585-B6V8 /T3
BZX585-B6V8 T/R
