BZX55B5V1
5.1V 2% 500mW Zener diodes in DO-35
Manufacturer： ['comon-semi', 'taiwan-semiconductor', 'vishay']
series introduction
The BZX55B5V1 Series is a robust lineup of Zener diodes renowned for their voltage regulation capabilities, specifically designed to provide stable reference voltages in a variety of electronic applications. These diodes feature a low Zener impedance, which ensures minimal voltage fluctuation under varying load conditions, making them ideal for precision voltage regulation tasks. With a Zener voltage rating of 5.1V, the BZX55B5V1 Series is optimized for applications requiring reliable voltage clamping and regulation, ensuring that sensitive components operate within their specified voltage ranges.
Constructed with a small package size, the BZX55B5V1 diodes offer excellent thermal stability and power dissipation characteristics, allowing for efficient heat management even in high-performance applications. Their design incorporates a hermetically sealed glass package that provides enhanced reliability and protection against environmental factors such as moisture and dust, which is critical in industrial and automotive settings. The series also features a wide operating temperature range, ensuring dependable performance in both high and low-temperature environments, thus catering to diverse application needs.
The versatility of the BZX55B5V1 Series makes it suitable for a broad array of use cases, including power supply circuits, signal conditioning, and voltage reference applications. They are commonly employed in consumer electronics, such as televisions and audio equipment, where consistent voltage regulation is paramount to maintain optimal performance. Additionally, these Zener diodes find utility in automotive electronics, providing over-voltage protection for sensitive components, and in telecommunications, where they help stabilize voltage levels in modems and routers.
In summary, the BZX55B5V1 Series stands out for its reliable performance, compact design, and broad applicability, making it an essential component for engineers and designers seeking efficient voltage regulation solutions in their electronic systems.

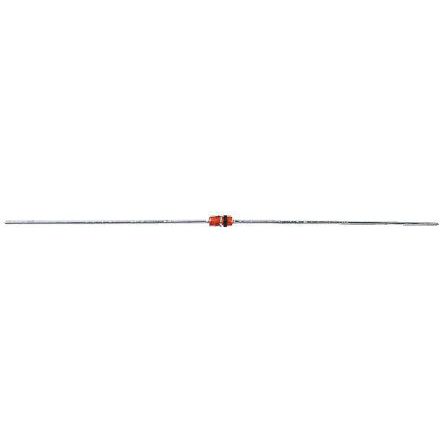

Images for reference
Image Preview
Image Preview
Image Preview
