BZX55B2V4
2.4V 2% 0.5W single zener diodes
Manufacturer： ['taiwan-semiconductor', 'vishay']
series introduction
The BZX55B2V4 Series is a comprehensive line of Zener diodes renowned for their precision voltage regulation, reliability, and robust performance across diverse applications. Designed to provide a stable reference voltage, the BZX55B2V4 Series features a nominal Zener voltage of 2.4V, making it an ideal choice for low-voltage applications where consistent performance is critical. These diodes are constructed using high-quality silicon material, which facilitates efficient operation and minimizes leakage current, ensuring that devices function optimally even under varying temperature conditions.
One of the standout features of the BZX55B2V4 Series is its ability to maintain tight voltage tolerances, typically within ±5%, under specified test conditions. This characteristic is essential for precision circuit designs, particularly in analog applications where voltage stability is paramount. The BZX55B2V4 Series also boasts a power dissipation rating of 500 mW, providing ample overhead for numerous applications without the risk of thermal overload.
The design of the BZX55B2V4 Series diodes incorporates a DO-41 package, which allows for easy integration into existing PCB layouts. This through-hole package style not only enhances heat dissipation but also provides a sturdy physical footprint, making it suitable for both automated assembly and manual soldering processes. The BZX55B2V4 Series is compatible with various soldering techniques, including wave soldering and reflow soldering, contributing to its versatility in manufacturing settings.
Typical applications of the BZX55B2V4 Series include voltage regulation in power supplies, reference voltage sources for operational amplifiers, and protection circuits in consumer electronics. Its reliable performance makes it particularly useful in automotive electronics, telecommunications, and industrial control systems, where stable operation is essential. Overall, the BZX55B2V4 Series Zener diodes deliver exceptional performance and reliability, making them a trusted choice for engineers and designers seeking efficient voltage regulation solutions in their circuits.
Images for reference

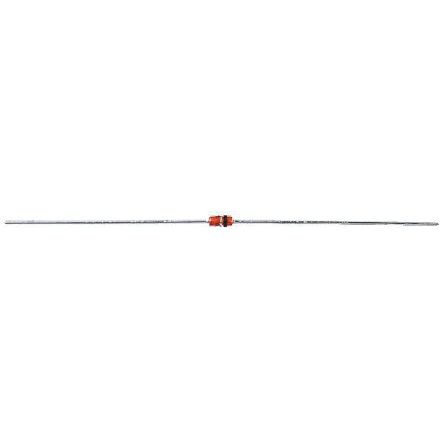

DO35
Image Preview
Image Preview
