BZX55B10
Zener diodes with 0.5W power rating
Manufacturer： ['comon-semi', 'taiwan-semiconductor', 'vishay']
series introduction
The BZX55B10 Series is a collection of precision Zener diodes that are engineered to deliver reliable voltage regulation and reference in a variety of electronic applications. Known for their robust performance and stability, these Zener diodes feature a nominal Zener voltage of 10 volts and are designed to maintain a consistent voltage output under varying load conditions. With a wide operating temperature range of -65°C to +150°C, the BZX55B10 Series ensures dependable operation in both commercial and industrial environments, making them suitable for a diverse array of applications.
One of the standout features of the BZX55B10 Series is its low dynamic impedance, which allows for minimal voltage variation even when subjected to significant changes in current. This characteristic is essential for applications that demand high precision and stability, such as voltage regulation circuits, surge protection systems, and reference voltage sources. The diodes are constructed using silicon technology, which provides excellent thermal stability and reliability, ensuring long-term performance in critical electronic circuits.
The design of the BZX55B10 Series emphasizes compactness and ease of integration, featuring a DO-41 package that is compatible with standard PCB layouts. This makes them ideal for use in space-constrained environments, such as consumer electronics, telecommunications equipment, and automotive electronics. Their versatility allows for deployment in both analog and digital systems, including power supply circuits, signal conditioning circuits, and other general-purpose electronics.
In summary, the BZX55B10 Series stands out for its exceptional voltage regulation capabilities, thermal stability, and compact design, making it an excellent choice for engineers and designers seeking dependable Zener diodes for a wide range of applications across multiple industries. Whether in high-performance computing, automotive systems, or consumer devices, the BZX55B10 Series is poised to meet the demands of modern electronic design with precision and reliability.
Images for reference

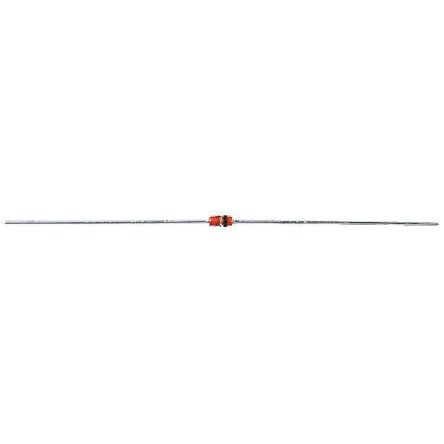

DO35
Image Preview
Image Preview
