BZV55C27
27V Zener diodes for various applications
Manufacturer： ['taiwan-semiconductor', 'dc', 'multicomp', 'microsemi', 'micro-commerical-co']
series introduction
The BZV55C27 is a high-performance Zener diode series designed to provide voltage regulation and over-voltage protection in a variety of electronic applications. Known for its reliability and precision, the BZV55C27 series features a nominal reverse Zener voltage of 27 volts, making it an ideal choice for circuits requiring stable voltage references. The diodes in this series are manufactured using advanced silicon technology, ensuring minimal leakage current and tight tolerances, which are critical for high-performance designs.
One of the key features of the BZV55C27 series is its low dynamic impedance, which enables the diode to maintain a consistent voltage even under varying load conditions. This characteristic enhances the diode's ability to protect sensitive components from voltage spikes, ensuring the longevity and reliability of the overall circuit. Additionally, the BZV55C27 series offers a power dissipation capability of 1 watt, allowing it to handle a range of current levels without compromising performance.
The design of the BZV55C27 series emphasizes thermal stability and robustness, making it suitable for various operating environments. With a junction temperature range of -55°C to +150°C, these Zener diodes can operate effectively in both high and low-temperature conditions. This versatility ensures that the BZV55C27 can be utilized in applications ranging from consumer electronics to industrial control systems.
Typical applications for the BZV55C27 series include voltage regulation in power supply circuits, reference voltage generation in precision analog applications, and surge protection in automotive and telecommunications systems. Its compact DO-41 package enhances its adaptability, allowing for easy integration into printed circuit boards (PCBs) without occupying significant board space. Overall, the BZV55C27 series stands out as a reliable solution for engineers seeking efficient and effective voltage regulation in their electronic designs.
Images for reference

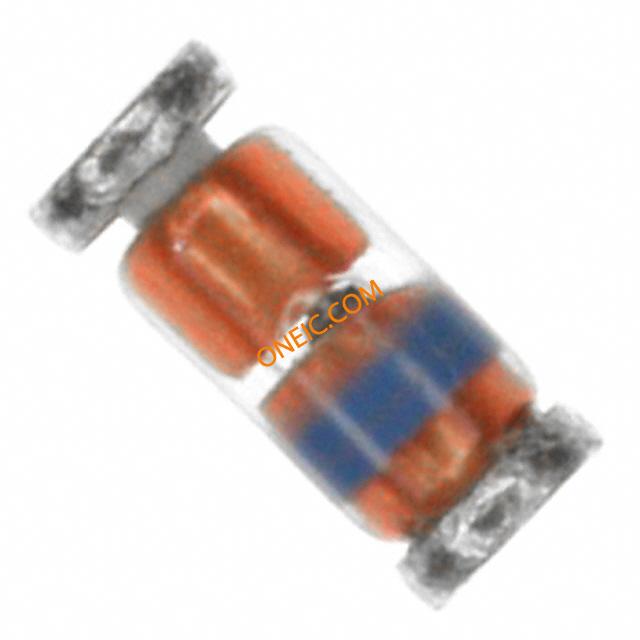

BZV55C27-TP
MINIMELF Pkg Top
Image Preview
