BZT52C5V1-7-F

5.1V Zener diodes in compact SOD-123 packages for voltage regulation

Manufacturer: ['diodes', 'diodeszetex', 'multicomp', 'diodes-zetex']

series introduction

# Introduction to the BZT52C5V1 - 7 - F Product Series

## 1. Overview
The BZT52C5V1 - 7 - F product series belongs to the realm of semiconductor components, specifically Zener diodes. These diodes play a crucial role in electronic circuits, offering precise voltage regulation and protection functions. The series is designed to meet the diverse needs of modern electronic systems, from consumer electronics to industrial control applications.

## 2. Key Features

### 2.1 Voltage Regulation
- **Precise Zener Voltage**: The BZT52C5V1 - 7 - F series is characterized by a specific Zener voltage. For example, the “5V1” in the part number indicates a nominal Zener voltage of 5.1V. This precise voltage regulation is essential in circuits where a stable reference voltage is required. It ensures that the output voltage remains within a narrow tolerance range, even when there are fluctuations in the input voltage or load current.
- **Low Voltage Tolerance**: These diodes typically have a low voltage tolerance, which means that the actual Zener voltage of each device in the series is very close to the nominal value. This high level of accuracy is crucial in applications such as voltage references in analog - to - digital converters (ADCs) and power management circuits.

### 2.2 Power Dissipation
- **Adequate Power Handling**: The series is designed to handle a certain amount of power dissipation. This is important because when a Zener diode is in the breakdown region (performing its voltage - regulation function), it dissipates power in the form of heat. The BZT52C5V1 - 7 - F diodes are engineered to dissipate this power efficiently, preventing overheating and ensuring reliable operation.
- **Thermal Stability**: They exhibit good thermal stability, which means that their electrical characteristics, such as the Zener voltage, do not change significantly with temperature variations. This is particularly important in applications where the operating environment may have a wide temperature range.

### 2.3 Package Design
- **Compact and Surface - Mountable**: The BZT52C5V1 - 7 - F diodes are available in a compact surface - mount package. This makes them ideal for modern printed circuit board (PCB) designs, where space is often at a premium. The surface - mount technology (SMT) allows for automated assembly processes, which increases production efficiency and reduces manufacturing costs.
- **Good Mechanical Stability**: The package provides good mechanical stability, protecting the delicate semiconductor die inside from physical damage during handling, assembly, and operation.

## 3. Applications

### 3.1 Power Supply Circuits
- **Voltage Regulation**: In power supply circuits, the BZT52C5V1 - 7 - F diodes can be used to regulate the output voltage. They can be connected in parallel with the load to maintain a constant voltage across it. For example, in a battery - powered device, the diode can ensure that the voltage supplied to the sensitive electronic components remains stable, even as the battery voltage decreases over time.
- **Over - Voltage Protection**: These diodes can also act as over - voltage protection devices. When the input voltage exceeds the Zener voltage, the diode enters the breakdown region and conducts current, diverting the excess voltage away from the load and protecting it from damage.

### 3.2 Signal Conditioning Circuits
- **Reference Voltage Generation**: In signal conditioning circuits, such as those used in sensors and measurement systems, the BZT52C5V1 - 7 - F diodes can be used to generate a stable reference voltage. This reference voltage is then used to calibrate and scale the input signals, ensuring accurate measurement and processing.
- **Clipping and

Images for reference

SOD-123

SOD-123

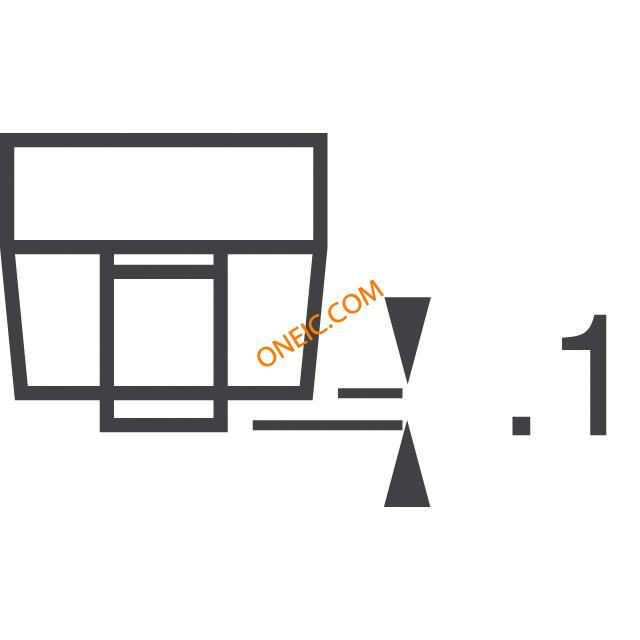

SOD-123 500mW Side 1

SOD-123 500mW Side 1

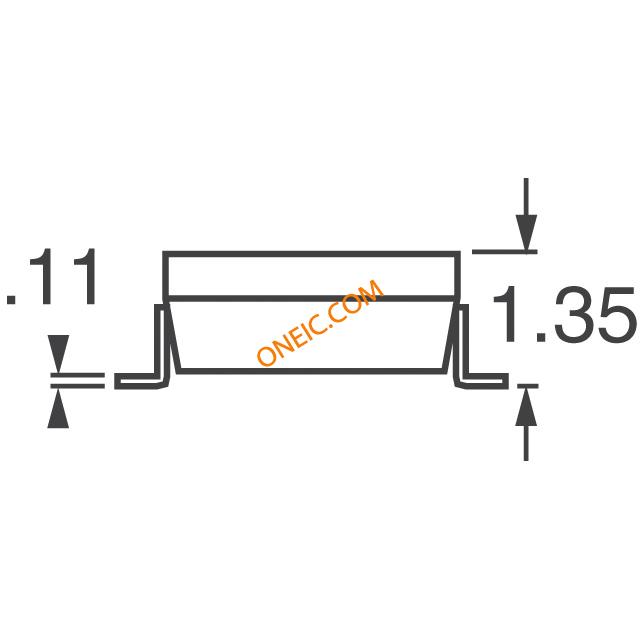

SOD-123 500mW Side 2

SOD-123 500mW Side 2
