BZT52C4V7T
Zener diodes with 4.7V for various wattages
Manufacturer： ['diodes', 'diodes-zetex', 'diodeszetex', 'mcc', 'micro-commerical-co']
series introduction
The BZT52C4V7T Series is a comprehensive range of surface-mount Zener diodes designed to provide reliable voltage regulation in various electronic applications. Renowned for their precision and stability, these Zener diodes feature a nominal Zener voltage of 4.7V, making them ideal for applications requiring consistent voltage clamping and reference. The BZT52C4V7T Series is constructed with a robust silicon material that ensures low leakage current and excellent thermal stability, which translates to reliable performance under varying temperature conditions.
One of the standout characteristics of the BZT52C4V7T Series is its compact SOD-123 package, which allows for efficient space utilization on printed circuit boards (PCBs). This small footprint is particularly beneficial for modern electronic devices where minimizing size without compromising performance is crucial. The series also boasts a maximum power dissipation rating of 500 mW, enabling it to handle transient conditions effectively, making it suitable for both commercial and industrial applications.
This product series is particularly well-suited for use in voltage regulation circuits, providing stable reference voltages for analog and digital circuits. Its inherent ability to clamp voltage levels makes it an excellent choice for protecting sensitive components from voltage spikes and fluctuations, thereby enhancing the reliability of the overall system. The BZT52C4V7T Series is commonly employed in applications such as power supplies, automotive electronics, telecommunications, and consumer electronics, where robust voltage regulation is essential.
In summary, the BZT52C4V7T Series combines advanced technology with practical design characteristics, delivering a reliable solution for voltage regulation and protection in a wide range of applications. Its compact size, excellent thermal stability, and reliable performance make it an invaluable component for engineers looking to enhance the durability and efficiency of their electronic designs.
Images for reference
SOD-523

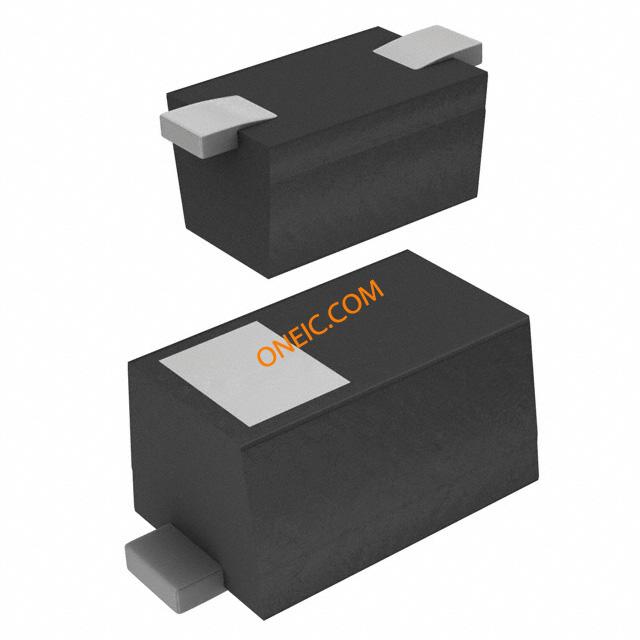

SOD-523uni

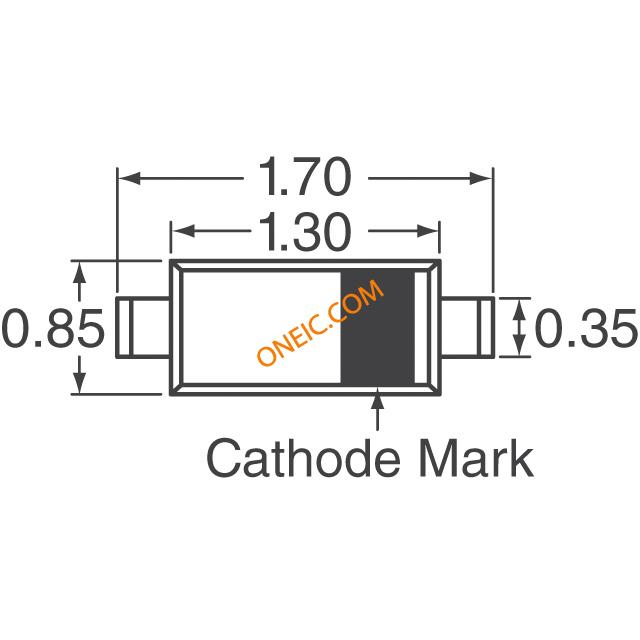

SOD-523 Package Top
