BZT52C15S-7
15V 200mW Zener diodes in SOD-323 package
Manufacturer： ['diodes', 'multicomp', 'diodes-zetex', 'diodeszetex']
series introduction
The BZT52C15S-7 Series is a distinguished line of Zener diodes engineered to provide precise voltage regulation and protection in electronic circuits. Known for their reliability and versatility, these diodes are constructed to deliver a stable reverse breakdown voltage, making them ideal for applications requiring voltage clamping and reference regulation. Designed with a maximum breakdown voltage of 15V, the BZT52C15S-7 series ensures consistent performance in a variety of environments, contributing to robust circuit designs.
One of the standout features of the BZT52C15S-7 Series is its low dynamic resistance, which enhances the efficiency of voltage regulation, thereby minimizing power loss during operation. This characteristic is particularly beneficial in battery-powered devices and energy-sensitive applications, where conserving power is paramount. The thermal stability of these diodes is another vital aspect, with a wide operating temperature range that ensures they perform reliably under varying conditions, from -55°C to +150°C.
The design of the BZT52C15S-7 Series is optimized for surface-mount technology (SMT), allowing for easy integration into modern circuit boards. The compact package contributes to space-saving designs, making these diodes suitable for densely packed electronics such as smartphones, tablets, and various consumer gadgets. Their high surge current handling capability further enhances their appeal in industrial applications, where fluctuations in voltage can occur.
In terms of applications, the BZT52C15S-7 Series finds its place in a multitude of sectors. It is extensively utilized in power supply circuits, signal level clamping, and voltage reference applications. Additionally, they serve critical roles in automotive electronics, telecommunications, and industrial equipment, where dependable voltage regulation and transient protection are essential. Overall, the BZT52C15S-7 Series exemplifies a reliable solution for engineers seeking to enhance the performance and durability of their electronic designs.
Images for reference
SOD-323,SC-76

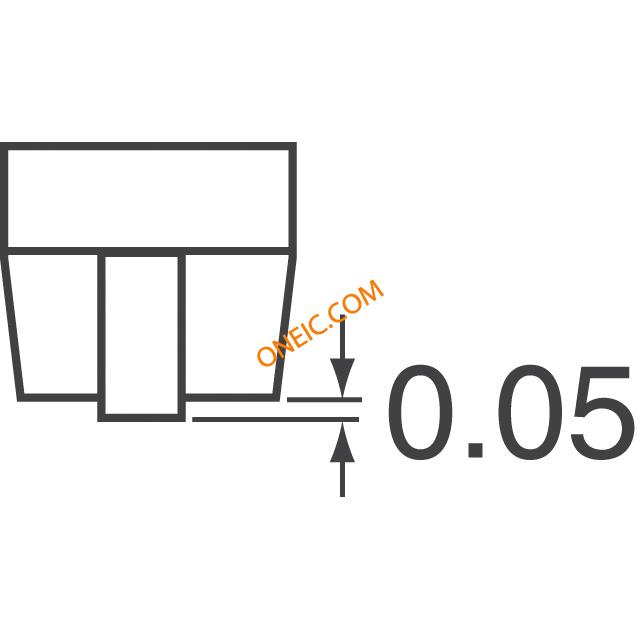

SOD-323 200mW Side 2

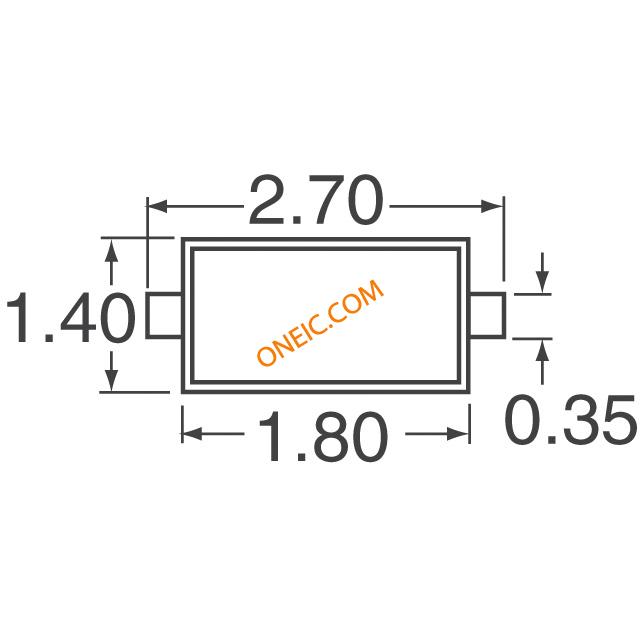

SOD-323 200mW Top
