BZT03C7
Zener diodes with various voltages and wattages
Manufacturer： vishay
series introduction
The BZT03C7 Series is a comprehensive range of Zener diodes designed to provide reliable voltage regulation in various electronic applications. These diodes are specifically engineered for low to medium power applications, offering a broad spectrum of Zener breakdown voltages that cater to diverse circuit requirements. With a robust design and exceptional thermal stability, the BZT03C7 Series enables efficient voltage clamping and regulation while minimizing power losses, making them indispensable components in modern electronic circuitry.
One of the standout features of the BZT03C7 Series is its versatility in voltage ratings, which typically ranges from 2.4V to 75V. This extensive range allows designers to select the appropriate Zener diode for specific voltage regulation needs, ensuring optimal performance across a variety of applications. The series utilizes a high-quality silicon construction, resulting in low leakage currents and reliable performance across a wide temperature range of -55°C to +150°C. This thermal resilience ensures that the diodes can operate effectively in environments with significant temperature fluctuations, making them suitable for both consumer electronics and industrial applications.
The design characteristics of the BZT03C7 Series include a compact DO-41 package, which facilitates easy integration into space-constrained designs. This package allows for efficient heat dissipation, enhancing the longevity and reliability of the diodes under continuous operation. Additionally, the series features a low dynamic resistance, which contributes to stable performance during transient voltage spikes, further underscoring its suitability for applications requiring precise voltage regulation.
Typical use cases for the BZT03C7 Series include voltage reference circuits, surge protection devices, and power supply regulation, where maintaining a stable voltage is critical. They are extensively utilized in consumer electronics, automotive electronics, and telecommunications systems, playing a vital role in ensuring the reliability and safety of electronic devices. Overall, the BZT03C7 Series stands out as a dependable solution for engineers seeking efficient and effective Zener diodes that meet the rigorous demands of modern electronic applications.

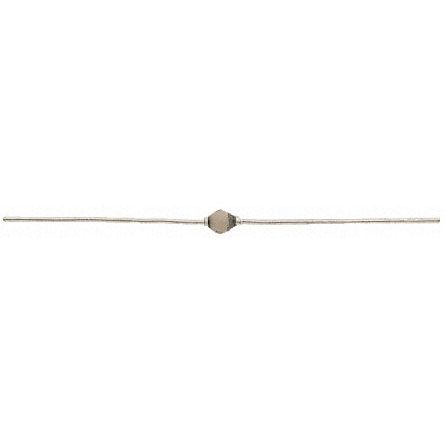

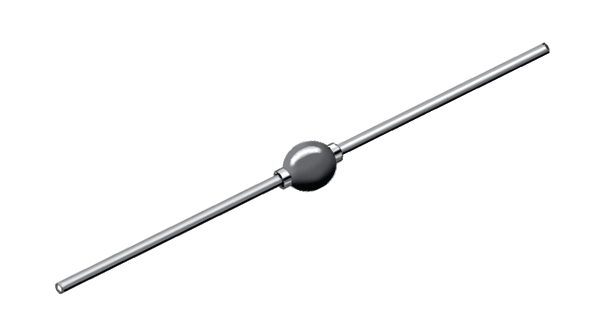

Images for reference
Image Preview
Image Preview
Image Preview
