BZM55B11
Vishay single zener diodes for various uses
Manufacturer： vishay
series introduction
The BZM55B11 series is a robust line of Zener diodes that provides precise voltage regulation and transient voltage suppression, making it an essential component in various electronic applications. Designed to offer superior reliability and performance, these diodes feature a nominal Zener voltage of 11V, with a remarkable tolerance of ±5%. This precision allows designers to ensure stable operation in their circuits, even in the presence of voltage fluctuations.
One of the key features of the BZM55B11 series is its enhanced power dissipation capability, which is rated at 1W. This enables the diodes to handle substantial power levels without compromising performance, thus ensuring that they can be integrated into both low-power and high-power applications seamlessly. The devices are constructed using a silicon planar process, offering a fast response time to transient voltages, making them ideal for protecting sensitive components from voltage spikes.
The design characteristics of the BZM55B11 series include a standard DO-41 package, which provides excellent thermal performance and aids in effective heat dissipation. This package is compatible with automated assembly processes, ensuring ease of integration into various circuit designs. The diodes exhibit low reverse leakage current, which is crucial for maintaining circuit integrity, particularly in battery-powered applications where power efficiency is paramount.
Suitable use cases for the BZM55B11 series include voltage regulation in power supplies, over-voltage protection for sensitive microcontrollers, and reference voltage applications in analog circuits. Typical applications span consumer electronics, telecommunications, and automotive systems, where stable voltage levels and protection from voltage spikes are essential. The BZM55B11 series serves as a reliable solution for engineers seeking to enhance the durability and functionality of their electronic designs, ensuring consistent performance across diverse operational environments.
Images for reference

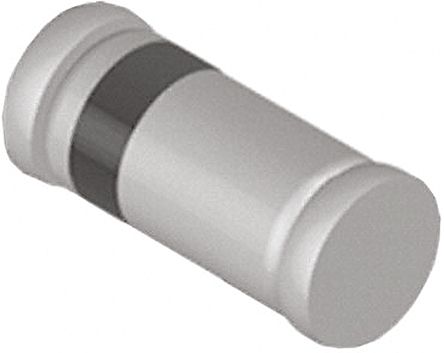

Image Preview
Image Preview
