BZG05C6V2
Zener diodes with various specs for surface mount
Manufacturer： vishay
series introduction
The BZG05C6V2 Series is a collection of high-performance Zener diodes designed to provide precise voltage regulation and protection in a wide array of electronic applications. Known for their robust construction and reliable performance, these Zener diodes are particularly suited for use in power supply circuits, voltage reference applications, and over-voltage protection systems. With a nominal Zener voltage of 6.2V, the BZG05C6V2 diodes facilitate stable voltage clamping, ensuring that sensitive components are shielded from voltage spikes and fluctuations.
The design characteristics of the BZG05C6V2 Series highlight their versatility and adaptability in various environments. These diodes are available in a compact DO-41 package, which allows for easy integration into both surface-mount and through-hole applications, making them ideal for space-constrained designs. The maximum power dissipation of 1W and the ability to handle reverse currents effectively ensures that these diodes can operate reliably even under challenging conditions. Furthermore, the BZG05C6V2 Series incorporates a low dynamic resistance, which enhances their performance in transient voltage suppression scenarios.
Typical applications of the BZG05C6V2 Series span multiple sectors, including consumer electronics, telecommunications, automotive, and industrial automation. In consumer electronics, these Zener diodes are frequently utilized in power adapters, voltage regulators, and circuit protection modules. In the automotive industry, they play a critical role in safeguarding electronic control units (ECUs) from transient voltage spikes, ensuring the longevity and reliability of automotive electronics. Additionally, in industrial automation, the BZG05C6V2 Series is employed in sensor circuits and control systems, where accurate voltage regulation is essential for optimal performance.
In summary, the BZG05C6V2 Series Zener diodes stand out for their exceptional voltage regulation and protection capabilities, making them an invaluable component in modern electronic designs. Their compact size, robust performance, and wide applicability across various industries position them as a reliable choice for engineers seeking high-quality voltage regulation solutions.
Images for reference

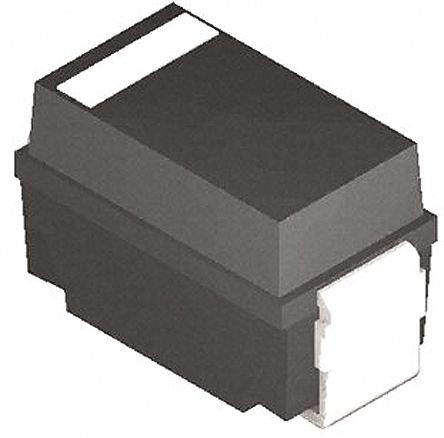

DO-214AC, SMA
Image Preview
Image Preview
