BZG05C3V6
Zener diodes with various specs for electronics
Manufacturer： vishay
series introduction
The BZG05C3V6 Series is a distinguished line of Zener diodes designed to deliver precise voltage regulation and protection across a myriad of electronic applications. Renowned for their robust performance, these diodes feature a low Zener voltage of 3.6V, making them an ideal choice for applications requiring tight voltage tolerances. The BZG05C3V6 Series is meticulously engineered using high-quality silicon material, ensuring excellent thermal stability and reliability under varying operational conditions.
One of the key features of the BZG05C3V6 Series is its low reverse current, which significantly improves energy efficiency in voltage regulation tasks. This characteristic, combined with a maximum power dissipation rating, enables designers to operate these components effectively within their specified limits, minimizing the risk of thermal runaway. Additionally, the BZG05C3V6 Series boasts a fast response time, allowing for quick voltage clamping during transient events, which is essential for protecting sensitive electronic circuits from voltage spikes.
The design of the BZG05C3V6 diodes includes a compact DO-35 package, which facilitates easy integration into various PCB layouts without consuming excessive board space. This compact form factor makes the series particularly well-suited for applications in consumer electronics, automotive systems, and telecommunications equipment, where space is often at a premium. Their ability to maintain voltage regulation across a range of current levels also makes them ideal for use in voltage reference circuits and signal conditioning applications.
Typical applications for the BZG05C3V6 Series include power supply circuits, where they serve as voltage stabilizers, and in protection circuits for sensitive components such as microcontrollers and integrated circuits. They are also commonly used in LED driver circuits to prevent overvoltage conditions, ensuring longer component life and enhanced reliability. Overall, the BZG05C3V6 Series stands out as a versatile solution for engineers seeking dependable voltage regulation and protection in compact electronic designs.
Images for reference

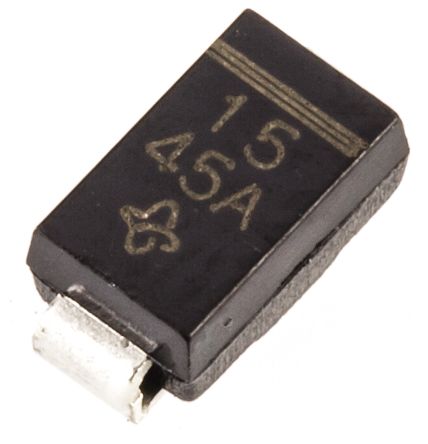

DO-214AC, SMB
Image Preview
Image Preview
