BYV26C
1A, 600V diode in SOD-57 package
Manufacturer： ['vishay', 'nxp', 'oneic']
series introduction
The BYV26C Series is a highly efficient line of high-voltage, fast-recovery diodes designed for a wide range of power electronics applications. Characterized by their robust performance and reliability, these diodes are engineered to meet the demands of modern circuitry in various industrial and consumer applications. With a peak reverse voltage rating of 600V and a forward current rating of up to 3A, the BYV26C Series excels in environments where high efficiency and rapid switching are essential.
One of the key features of the BYV26C Series is its fast recovery time, which significantly reduces switching losses in high-frequency applications. This makes these diodes particularly suitable for use in power supplies, motor drives, and inverter circuits, where efficient energy conversion is crucial. The series also incorporates a soft recovery characteristic, minimizing voltage spikes and electromagnetic interference, thereby enhancing the overall stability and performance of the system.
In terms of design, the BYV26C Series diodes offer a standard DO-41 package, facilitating easy integration into various circuit layouts. The encapsulation is designed to endure high temperatures and harsh environmental conditions, making these diodes a reliable choice for industrial applications. Their thermal stability is complemented by a wide operating temperature range, allowing for consistent performance in both ambient and elevated temperature environments.
Typical applications for the BYV26C Series include switch-mode power supplies (SMPS), rectification in power converters, and energy storage systems. The fast recovery and high voltage rating make them ideal for use in photovoltaic systems and electric vehicle charge controllers, where efficient power management is necessary. Additionally, these diodes are also utilized in telecommunications and data processing equipment, where reliable performance is paramount.
Overall, the BYV26C Series stands out as a versatile and dependable solution for engineers and designers seeking high-performance diodes that can withstand the rigors of modern electronic applications.

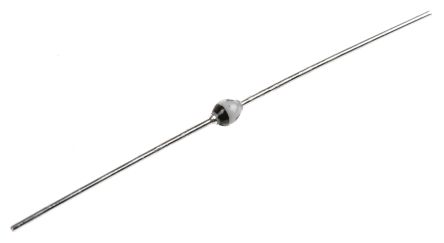

Images for reference

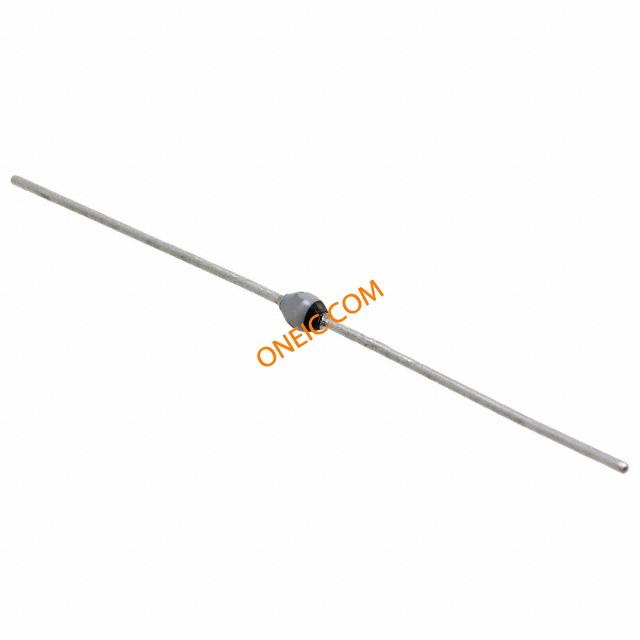

SOD-57, Axial
Image Preview
Image Preview
