BYQ28EF
Diode and rectifier components in TO-220AB/F form
Manufacturer： ['iscsemi', 'vishay-general-semiconductor', 'vishay']
series introduction
The BYQ28EF Series is an advanced line of high-performance Schottky diodes, meticulously engineered to meet the rigorous demands of modern electronic applications. These diodes are characterized by their low forward voltage drop and rapid switching capabilities, making them an ideal choice for power management and rectification tasks in a wide array of devices. Featuring a maximum reverse voltage rating of 40V and forward current ratings up to 30A, the BYQ28EF Series effectively balances high efficiency with reliable performance, catering to both low and high-power applications.
Designed with innovative thermal management in mind, the BYQ28EF diodes incorporate a robust construction that enhances heat dissipation, thereby improving overall reliability and longevity. The package options available ensure compatibility with standard PCB layouts, allowing for flexible integration into existing designs. The low leakage current characteristic of these Schottky diodes is particularly advantageous in battery-operated devices, where energy savings are crucial. This feature, combined with their fast recovery time, significantly reduces power losses during operation, making them highly suitable for high-frequency applications.
The BYQ28EF Series is perfectly suited for a variety of use cases, including but not limited to power supply circuits, synchronous rectification in switch-mode power supplies, and output rectification in solar inverters. Their efficiency makes them an excellent choice for automotive applications, where they can be employed in electric vehicle charging systems and power distribution modules. Additionally, these diodes are widely used in industrial automation equipment, consumer electronics, and telecommunications, where reliability and performance are non-negotiable.
In summary, the BYQ28EF Series stands out as a versatile and efficient solution for designers seeking high-quality Schottky diodes. By combining low forward voltage drop, rapid switching performance, and exceptional thermal characteristics, this series is positioned to meet the diverse needs of modern electronics, ensuring optimal performance across various applications and industries.
Images for reference

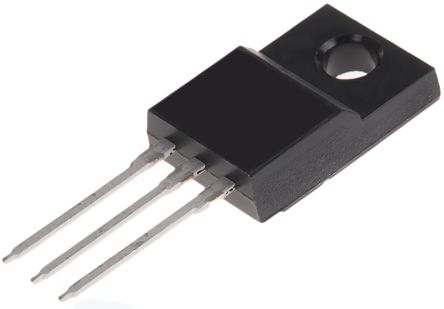

TO-220AB Full Pack

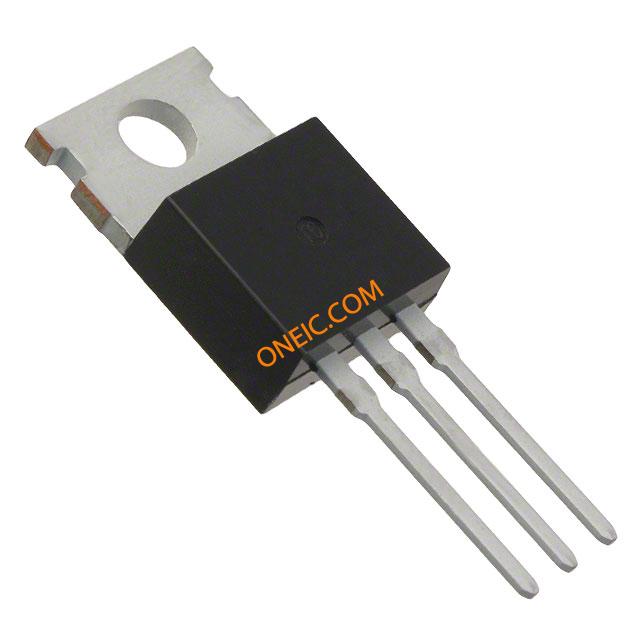

AOT3N50
Image Preview
