BTS5242
Smart high-side power switch ICs for efficient power distribution
Manufacturer： infineon
series introduction
# BTS5242 Product Series Introduction
## Overview
The BTS5242 product series represents a cutting - edge range of electronic components engineered to meet the diverse and demanding requirements of modern electrical systems. These components are designed with a focus on high performance, reliability, and efficiency, making them suitable for a wide array of applications across multiple industries.
## Key Features
### 1. High - Current Handling Capability
One of the standout features of the BTS5242 series is its ability to handle high currents. This makes it an ideal choice for applications where significant power needs to be delivered, such as in automotive power distribution systems, industrial machinery, and high - power consumer electronics. The components are designed to withstand high - current loads without overheating or suffering from premature wear, ensuring long - term stability and performance.
### 2. Low On - Resistance
The BTS5242 series offers extremely low on - resistance. Low on - resistance translates to less power loss during operation, which in turn leads to higher energy efficiency. This is crucial in applications where power consumption is a major concern, as it helps to reduce operating costs and extend the battery life in portable devices. Additionally, the low power dissipation due to low on - resistance also contributes to better thermal management, reducing the need for complex cooling systems.
### 3. Advanced Protection Mechanisms
These components are equipped with a comprehensive set of protection features. Over - current protection safeguards the device from damage in case of excessive current flow, which can occur due to short - circuits or other electrical faults. Over - temperature protection ensures that the component shuts down safely if it reaches a critical temperature, preventing thermal damage. Reverse - polarity protection is also integrated, protecting the device from damage when the power supply is connected incorrectly.
### 4. Fast Switching Speed
The BTS5242 series boasts fast switching speeds, enabling rapid response times in electrical circuits. This is particularly important in applications such as motor control, where quick and precise switching is required to achieve smooth and efficient operation. The fast switching speed also reduces the time during which the component is in a transition state, minimizing power losses and electromagnetic interference (EMI).
### 5. Compact Design
The components in the BTS5242 series are designed with a compact form factor. This makes them easy to integrate into space - constrained applications, such as printed circuit boards (PCBs) in small - sized electronic devices. The compact design also allows for more efficient use of board space, enabling the development of more densely packed and feature - rich products.
## Technical Specifications
### Electrical Characteristics
- **Operating Voltage Range**: The BTS5242 series typically operates within a wide voltage range, for example, from 5V to 40V, which provides flexibility in different power supply configurations.
- **Continuous Current Rating**: Depending on the specific model in the series, the continuous current rating can range from several amperes to tens of amperes, allowing for a wide variety of power - handling requirements.
- **On - Resistance**: The on - resistance values are in the milliohm range, typically between 10 mΩ and 100 mΩ, ensuring low power dissipation.
### Thermal Characteristics
- **Thermal Resistance**: The components have relatively low thermal resistance values, which means they can effectively transfer heat away from the device. This helps in maintaining a stable operating temperature even under high - load conditions.
- **Maximum Operating Temperature**: The BTS5242 series can typically operate at temperatures ranging from - 40°C to 125°C, making them suitable for use in harsh environmental conditions.
## Applications
### Automotive Industry
In the automotive sector, the BTS5242 series is used in various applications. It can be found in power distribution modules
Images for reference

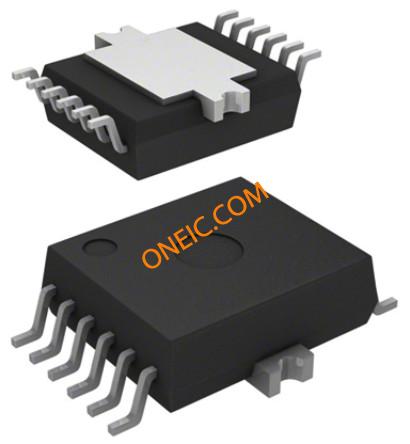

12-BSOP; P/PG-DSO-12
