BTS5012
Power switch ICs in TO-252 package
Manufacturer： infineon
series introduction
The BTS5012 Series is a robust line of high-side power switches designed for automotive and industrial applications, offering an excellent combination of performance, reliability, and protection features. Engineered for demanding environments, the BTS5012 Series utilizes advanced MOSFET technology that enables efficient power management with minimal on-resistance (RDS(on)), ensuring low heat generation and energy loss during operation. This series is particularly adept at handling a wide input voltage range, making it suitable for a variety of applications.
One of the standout features of the BTS5012 Series is its integrated protection mechanisms, which include over-temperature protection, over-current protection, and short-circuit protection. These functionalities not only enhance the longevity of the device but also safeguard the connected load from potential damage due to adverse conditions. Additionally, the series employs a built-in diagnostic capability that allows for real-time monitoring of the switch’s status, facilitating maintenance and reducing downtime in critical applications.
The design characteristics of the BTS5012 Series emphasize compactness and efficiency. The devices are housed in thermally enhanced packages that support effective heat dissipation, ensuring reliable performance in high-temperature environments. Their pin-compatible design allows for seamless integration into existing systems, making them an ideal choice for designers looking to upgrade their power management solutions without extensive redesign.
The typical applications for the BTS5012 Series are vast, ranging from automotive lighting control, motor drives, and system power management to industrial automation and smart home technologies. Their ability to control inductive loads, such as relays and solenoids, makes them particularly valuable in automotive systems where efficient power distribution is critical. Furthermore, these high-side switches are well-suited for applications requiring precise control, such as in electric vehicles and advanced driver-assistance systems (ADAS).
In summary, the BTS5012 Series stands out as a reliable and versatile solution for high-side switching applications, combining advanced protection features with efficient power handling capabilities. Its robust design and suitability for a wide range of applications make it an essential component for modern electronic systems in both automotive and industrial sectors.
Images for reference
.jpg)

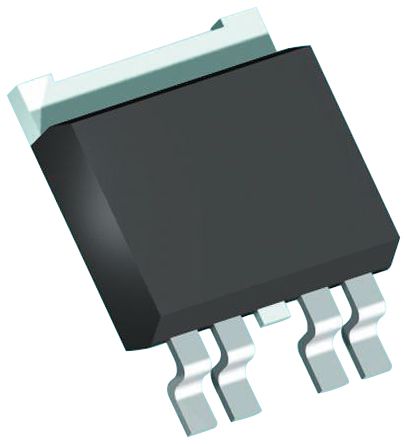

TO-252-5, DPak (4 Leads + Tab)
