series introduction

The BTS442E2 Series is a robust line of high-performance smart high-side switches designed for automotive and industrial applications, providing an efficient solution for controlling loads in demanding environments. Engineered to handle high currents while ensuring reliable operation, these switches integrate advanced features that enhance performance and safety, making them ideal for a variety of critical applications.

One of the key characteristics of the BTS442E2 Series is its ability to manage load currents up to 40A, with a supply voltage range of 5V to 36V. This versatility allows for seamless integration into a wide range of systems. The device employs an integrated protection mechanism, including over-temperature, over-current, and short-circuit protection, ensuring that the loads are safeguarded against potential damage. The series' low on-resistance (RDS(on)) minimizes power losses, contributing to improved energy efficiency, which is particularly crucial in automotive applications where battery life and energy consumption are paramount.

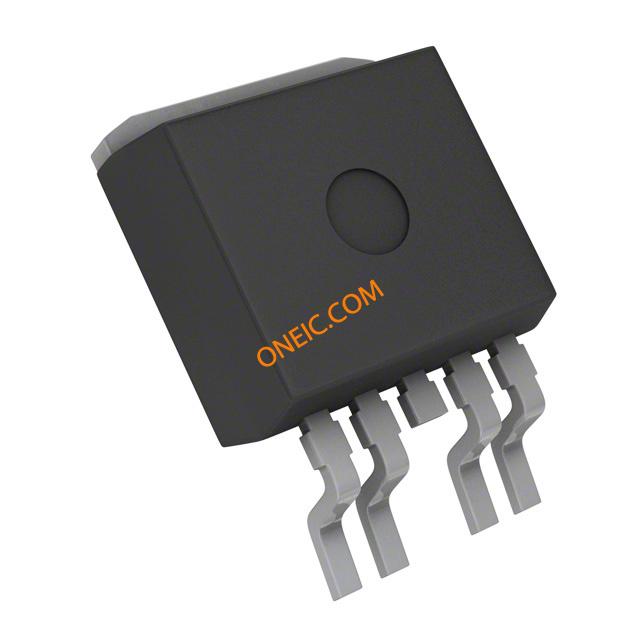

The design of the BTS442E2 Series is optimized for ease of use and integration. Featuring a compact package, these switches facilitate efficient thermal management, while their pin-compatible configurations allow for straightforward replacement and scaling in designs. The devices are equipped with a built-in diagnostic feature that provides feedback on load status, enhancing the reliability of system monitoring and fault detection.

The BTS442E2 Series is particularly well-suited for automotive lighting, motor control, and HVAC systems, where precision and reliability are essential. They are also utilized in industrial automation systems for controlling pumps, solenoids, and other actuators, demonstrating their versatility across diverse applications. As industries continue to evolve towards more sophisticated electronic systems, the BTS442E2 Series stands out as a dependable choice for engineers seeking to optimize performance while ensuring safety and efficiency in their designs.
