BTA06-800

Triacs in TO-220AB for various applications

Manufacturer: ['iscsemi', 'stm']

series introduction

The BTA06-800 Series is a robust line of triacs that are designed for efficient control of AC power in a variety of industrial and consumer applications. Recognized for their exceptional performance and reliability, these semiconductor devices are capable of handling up to 6A of current and can withstand a maximum voltage of 800V, making them ideal for high-power applications. The series is constructed using advanced technology that ensures minimal on-state voltage drop, which translates to reduced power loss and improved energy efficiency in electronic systems.

One of the key features of the BTA06-800 Series is its versatility in operation. These triacs can be used in both phase control and on/off switching applications, enabling precise control of AC loads such as motors, heating elements, and lighting systems. Their ability to operate over a wide temperature range enhances their suitability for various environments, from industrial manufacturing settings to residential installations. The BTA06-800 triacs are built with a high surge current capability, allowing them to endure transient conditions without failure, further solidifying their reliability in demanding applications.

In terms of design characteristics, the BTA06-800 Series is housed in a compact, thermally efficient package that facilitates easy integration into electronic circuits. The package design also promotes effective heat dissipation, which is crucial for maintaining performance and longevity in high-load situations. This makes them an excellent choice for applications requiring high thermal management, such as solid-state relays and motor control circuits.

Typical applications of the BTA06-800 Series include home automation systems, heating control systems, and industrial automation equipment. Their ability to handle substantial power loads while providing precise control makes them indispensable in modern electronic designs. Whether used in consumer electronics or complex industrial machinery, the BTA06-800 Series triacs deliver outstanding performance, ensuring that they meet the rigorous demands of today’s electrical systems.

Images for reference

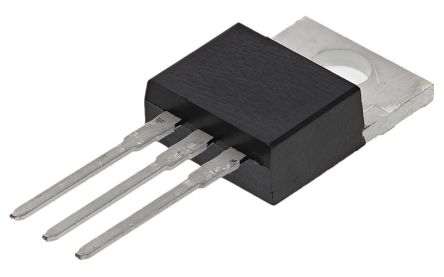

TO-220AB

TO-220AB

TO-220-3

TO-220-3

Image Preview

Image Preview

related Documents

Datasheets

Partlist

BTA06-800B
BTA06-800BW
BTA06-800BWRG
BTA06-800C
BTA06-800CRG
BTA06-800CW
BTA06-800CWRG
BTA06-800SW
BTA06-800TW
BTA06-800TWRG
