BT139-800E
Triac components with various ratings in TO-220AB
Manufacturer： ['nxp', 'ween-semi', 'iscsemi']
series introduction
The BT139-800E Series is a distinguished line of triacs, designed for effective control of AC loads in a variety of applications. Known for their robustness and reliability, these semiconductor devices are integral in managing power and providing efficient switching capabilities. The BT139-800E triacs can handle a maximum current of 16A and a blocking voltage of up to 800V, making them suitable for a wide range of industrial and consumer applications.
One of the key features of the BT139-800E Series is its excellent thermal stability, which enables consistent performance under varying temperature conditions. The device is housed in a standard TO-220 package, allowing for easy integration into existing designs while ensuring efficient heat dissipation. This feature is particularly beneficial in applications where prolonged operation is expected, as it minimizes the risk of overheating and failure.
The design of the BT139-800E triacs supports high-speed switching capabilities, making them ideal for applications requiring quick responses. These triacs are particularly effective in phase control, making them suitable for dimmers, motor speed controllers, and other applications where precise control of power is necessary. They can also be utilized in solid-state relays and heating control systems, providing versatility in their use.
Typical applications of the BT139-800E Series span across various industries, including home automation systems, industrial machinery, and automotive electronics. In home automation, these triacs facilitate efficient lighting control and appliance management, enhancing energy efficiency. In industrial settings, they are employed in motor control applications, ensuring smooth operation and improved energy consumption.
In summary, the BT139-800E Series stands out as a reliable solution for controlling AC loads, combining high performance with versatile applications. Its robust design and thermal stability make it an excellent choice for engineers looking to enhance the efficiency and longevity of their electronic systems.
Images for reference

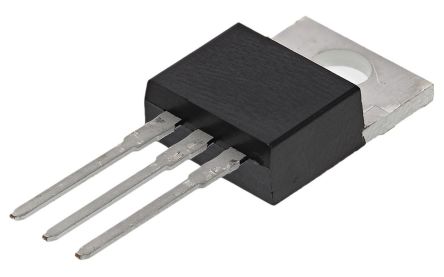

TO-220AB-3 SOT78
