BT136X-800
4A, 800V Triacs in TO-220F package
Manufacturer： ['nxp', 'ween-semi', 'iscsemi']
series introduction
The BT136X-800 Series is a collection of high-performance TRIACs designed for efficient control of AC power in a wide range of applications. These semiconductor devices are known for their exceptional reliability, robust design, and versatile performance, making them suitable for both industrial and consumer electronic applications. With a maximum voltage rating of 800V and a current carrying capability of up to 16A, the BT136X-800 Series is engineered to handle significant power loads while ensuring safe and stable operation.
One of the key features of the BT136X-800 Series is its thermal stability, which is achieved through advanced packaging and a well-optimized internal structure. This design characteristic allows the TRIACs to maintain performance under varying thermal conditions, making them ideal for use in environments with fluctuating temperatures. The devices also offer fast switching capabilities, enabling precise control of power delivery in applications such as motor control, lighting, and heating systems. Their low gate trigger current enhances their usability in sensitive circuits, allowing for integration in microcontroller-driven designs without the need for additional gate drive circuitry.
The BT136X-800 Series is particularly well-suited for applications in home automation, where they can control lighting systems and heating elements, providing energy efficiency and convenience. In industrial settings, these TRIACs are used in motor speed controls, pump controls, and other machinery that requires reliable AC switching. Their versatility extends to consumer electronics, where they can be found in appliances and HVAC systems, ensuring smooth operation and enhanced user experience.
In summary, the BT136X-800 Series stands out for its exceptional voltage and current handling capabilities, coupled with its robust thermal management and fast switching performance. This makes it a go-to solution for engineers and designers seeking reliable TRIACs for a multitude of applications across various industries.
Images for reference

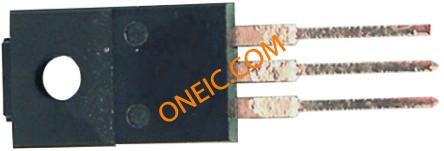

TO-220-3FullPack_SOT186A
