BSO220N03MD G Series

series introduction

# Introduction to the BSO220N03MD G Product Series

## 1. Overview
The BSO220N03MD G product series represents a cutting - edge line of semiconductor devices that have been engineered to meet the diverse and demanding requirements of modern electronic applications. These devices are designed with a focus on high performance, reliability, and efficiency, making them an ideal choice for a wide range of industries.

## 2. Key Features

### 2.1 Electrical Characteristics
- **Low On - Resistance**: The BSO220N03MD G series features an extremely low on - resistance (RDS(on)). This characteristic is crucial as it minimizes power losses during conduction. Lower on - resistance means less heat is generated within the device, which in turn improves the overall efficiency of the circuit. For example, in power management applications, reduced power losses translate to longer battery life in portable devices and lower energy consumption in larger systems.
- **High Current Capability**: These devices are capable of handling relatively high currents. This high current - carrying capacity makes them suitable for applications where significant power needs to be delivered, such as in motor control circuits. Whether it's driving small DC motors in consumer electronics or larger industrial motors, the BSO220N03MD G can handle the current requirements effectively.
- **Fast Switching Speed**: With fast switching speeds, the BSO220N03MD G series can rapidly turn on and off. This is essential in applications like switching power supplies, where high - frequency switching is required to achieve efficient power conversion. Fast switching reduces the time during which the device is in a transition state, minimizing power dissipation and improving the overall performance of the power supply.

### 2.2 Package and Thermal Design
- **Compact Package**: The devices in the BSO220N03MD G series come in a compact package. This small form factor is beneficial for applications where space is limited, such as in mobile devices, wearables, and miniaturized electronic systems. The compact design allows for more efficient use of the printed circuit board (PCB) real estate, enabling the development of smaller and more portable products.
- **Good Thermal Performance**: The package is designed to have excellent thermal characteristics. It can effectively dissipate heat generated during operation, ensuring that the device remains within its safe operating temperature range. This is achieved through features such as a large thermal pad and optimized internal layout. Good thermal performance not only enhances the reliability of the device but also allows it to operate at higher power levels without overheating.

### 2.3 Reliability and Durability
- **High - Quality Materials**: The BSO220N03MD G series is manufactured using high - quality semiconductor materials and advanced fabrication processes. These materials are carefully selected to ensure long - term stability and reliability. The use of high - purity silicon and other materials reduces the likelihood of device failures due to material defects or degradation over time.
- **Robust Design**: The devices are designed to withstand various environmental stresses, such as temperature variations, humidity, and mechanical shocks. This makes them suitable for use in harsh operating conditions, including automotive, industrial, and outdoor applications. The robust design also helps to ensure consistent performance over the device's lifespan.

## 3. Applications

### 3.1 Power Management
- **Switching Power Supplies**: In switching power supplies, the BSO220N03MD G series can be used as the main switching element. Its low on - resistance and fast switching speed contribute to high - efficiency power conversion. Whether it's a desktop computer power supply, a server power supply, or a power adapter for mobile devices, these devices can help reduce power losses and improve the overall performance of the power supply.
- **Battery Management Systems**: For battery - powered devices, the B

Images for reference

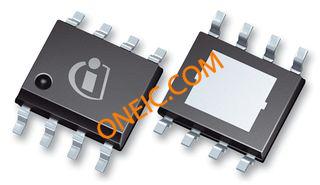

8-SOIC
