BQ76PL536
Battery management and monitoring ICs for Li - Ion batteries
Manufacturer： ti
series introduction
The BQ76PL536 series is a highly advanced family of battery monitoring and balancing integrated circuits designed to meet the rigorous demands of modern battery management systems (BMS). Engineered specifically for lithium-ion and lithium-polymer battery packs, this series features high-precision voltage measurement capabilities, allowing for accurate monitoring of individual cell voltages across multi-cell configurations. With a remarkable input voltage range and an integrated high-speed communication interface, the BQ76PL536 series ensures seamless interaction and data transmission between cells and the overall battery management system.
One of the key features of the BQ76PL536 series is its ability to monitor up to 16 series-connected cells, making it an ideal choice for applications in electric vehicles (EVs), energy storage systems, and industrial equipment. The series employs a robust architecture that includes integrated cell balancing, enhancing the longevity and performance of battery packs by ensuring that all cells are charged and discharged evenly. Additionally, the BQ76PL536 series incorporates advanced safety features, such as overvoltage and undervoltage protection, temperature monitoring, and fault detection, which contribute to the overall safety and reliability of battery systems.
Designed with flexibility in mind, the BQ76PL536 series supports daisy-chaining for scalability, allowing multiple devices to be interconnected in larger battery systems without compromising performance. This feature is particularly beneficial in high-capacity applications that require precise monitoring across numerous cells. The series also integrates a low-power wake-up mode, which is crucial for applications where energy efficiency is paramount, ensuring that the system consumes minimal power during idle periods.
Typical applications for the BQ76PL536 series extend beyond automotive uses to include renewable energy storage systems, uninterruptible power supplies (UPS), and portable electronic devices. Its versatility and comprehensive feature set make it an essential component for manufacturers seeking to enhance the safety, efficiency, and performance of their battery management solutions. As the demand for reliable and efficient battery systems continues to grow, the BQ76PL536 series stands out as a foundational technology that empowers innovation and sustainability across a wide range of industries.
Images for reference

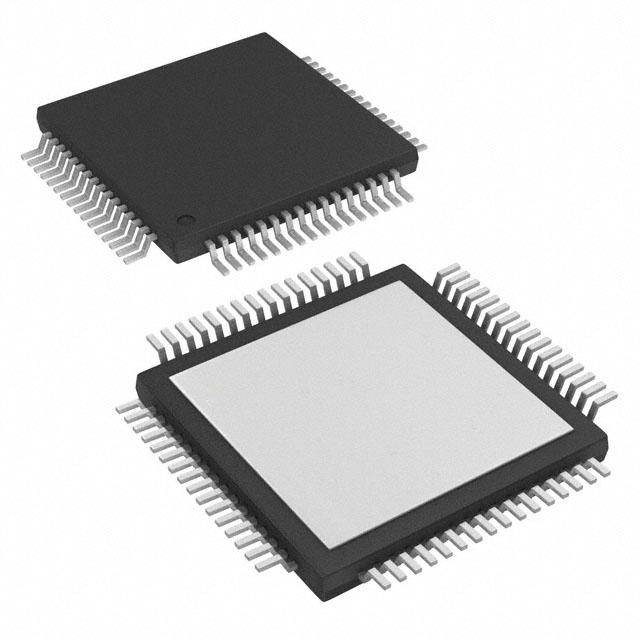

PAP-64-TQFP Exp Pad Pkg

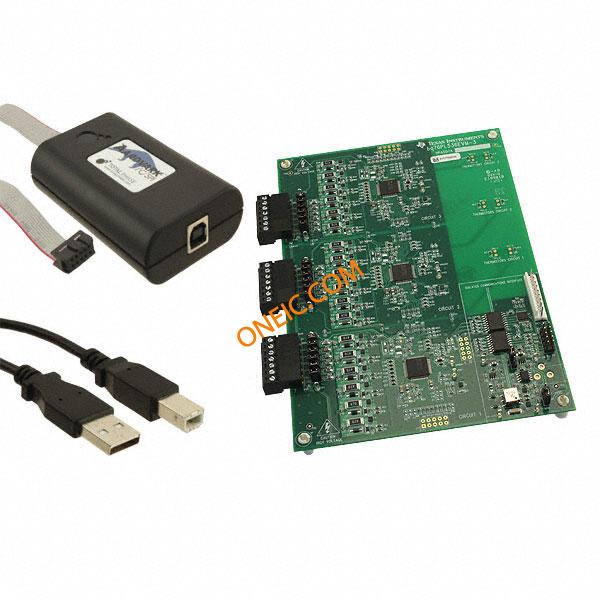

BQ76PL536EVM-3
