BQ24725RGR

Programmable lithium-ion battery charge controllers for 2-4 cell management

Manufacturer: ti

series introduction

# Introduction to the BQ24725RGR Product Series

## Overview
The BQ24725RGR is a highly advanced and versatile product series designed for battery charging and power management applications. Texas Instruments, a renowned leader in semiconductor technology, has engineered this series to meet the demanding requirements of modern electronic devices, offering a comprehensive solution for efficient and reliable battery charging.

## Key Features

### 1. High - Efficiency Charging
- The BQ24725RGR incorporates state - of - the - art charging algorithms that ensure high - efficiency power transfer from the power source to the battery. This results in reduced power losses during the charging process, which is crucial for minimizing heat generation and maximizing the overall energy utilization. For example, in applications where power consumption is a critical factor, such as portable medical devices, the high - efficiency charging feature helps to extend the battery life and reduce the need for frequent recharging.
- It supports a wide range of input voltages, allowing it to be used with various power sources, including wall adapters, USB ports, and solar panels. This flexibility makes it suitable for a diverse set of applications, from consumer electronics to industrial equipment.

### 2. Multiple Battery Chemistries Support
- One of the significant advantages of the BQ24725RGR series is its ability to support multiple battery chemistries, such as lithium - ion (Li - Ion), lithium - polymer (Li - Po), and nickel - metal hydride (NiMH). This makes it a versatile choice for designers who need to accommodate different battery types in their products. For instance, in the development of a multi - purpose handheld device, the ability to support different battery chemistries provides the option to choose the most suitable battery based on factors like energy density, cost, and safety requirements.
- The device can automatically detect the battery chemistry and adjust the charging parameters accordingly, ensuring optimal charging performance and battery safety.

### 3. Advanced Safety Features
- Over - voltage protection (OVP) is built into the BQ24725RGR to prevent the battery from being charged at voltages higher than its rated value. This protects the battery from damage and extends its lifespan. In case of a voltage spike in the power source, the OVP feature will quickly cut off the charging current to safeguard the battery.
- Over - current protection (OCP) is another essential safety feature. It limits the charging current to a safe level, preventing excessive current flow that could cause overheating and potentially damage the battery or the charging circuit.
- Thermal protection is also included. The device monitors its own temperature and the battery temperature during the charging process. If the temperature exceeds a safe threshold, the charging current is reduced or the charging process is stopped to prevent thermal runaway and ensure safe operation.

### 4. Programmability
- The BQ24725RGR offers a high degree of programmability, allowing designers to customize the charging parameters according to the specific requirements of their applications. Parameters such as charging current, charging voltage, and charging termination conditions can be easily adjusted using an I2C interface. This programmability enables the device to be optimized for different battery capacities, charging times, and system requirements. For example, in a high - performance laptop, the charging parameters can be programmed to provide a fast - charging option when the user is in a hurry or a slow - charging option for longer battery life.

### 5. Integrated Power Path Management
- The series features integrated power path management, which allows the device to simultaneously power the system load and charge the battery. This is particularly useful in applications where continuous operation is required, such as smartphones and tablets. When the device is connected to a power source, the BQ24725RGR can prioritize power delivery to the system load while also charging the

Images for reference

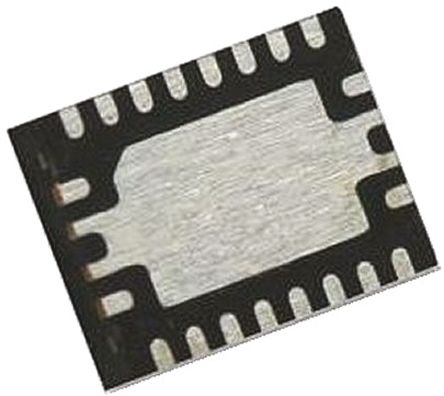

20-VFQFN

20-VFQFN

Image Preview

Image Preview

Image Preview

Image Preview
