BLF6G20-230
RF power MOSFET transistors for various uses
Manufacturer： ['nxp', 'ampleon']
series introduction
The BLF6G20-230 Series is a high-performance line of RF power transistors designed specifically for applications in the VHF and UHF frequency ranges. These transistors are engineered to meet the demanding requirements of modern communication systems, providing exceptional linearity, efficiency, and robustness. With a maximum output power of 230 watts, the BLF6G20-230 Series is particularly well-suited for use in high-power amplifiers, base stations, and industrial RF applications.
One of the key features of the BLF6G20-230 Series is its advanced LDMOS (Laterally Diffused Metal-Oxide-Semiconductor) technology, which allows for high efficiency and high gain, reducing the need for extensive cooling solutions. This technology also contributes to superior thermal stability, enabling the transistors to operate reliably under varying load conditions. The series is designed for operation in a wide frequency range, typically from 470 MHz to 1 GHz, making it versatile for both analog and digital modulation schemes, including DVB-T, LTE, and other wireless communication standards.
The compact design of the BLF6G20-230 transistors allows for integration into space-constrained environments, such as telecom infrastructure and broadcast systems. They feature a robust package that supports efficient heat dissipation, ensuring reliable performance even in high-demand operating conditions. Additionally, the series offers excellent intermodulation distortion (IMD) characteristics, which is critical for maintaining signal integrity in multi-carrier environments.
Typical applications for the BLF6G20-230 Series include RF amplifiers for cellular and broadcast transmitters, as well as high-power linear amplifiers for scientific and industrial applications. The series is especially advantageous in applications requiring high linearity and efficiency, such as in the development of next-generation communication systems and infrastructure. By leveraging the cutting-edge technology and design of the BLF6G20-230 Series, engineers can enhance the performance and reliability of their RF systems, ensuring they meet the ever-evolving demands of the industry.
Images for reference
2-LDMOST,SOT-502A

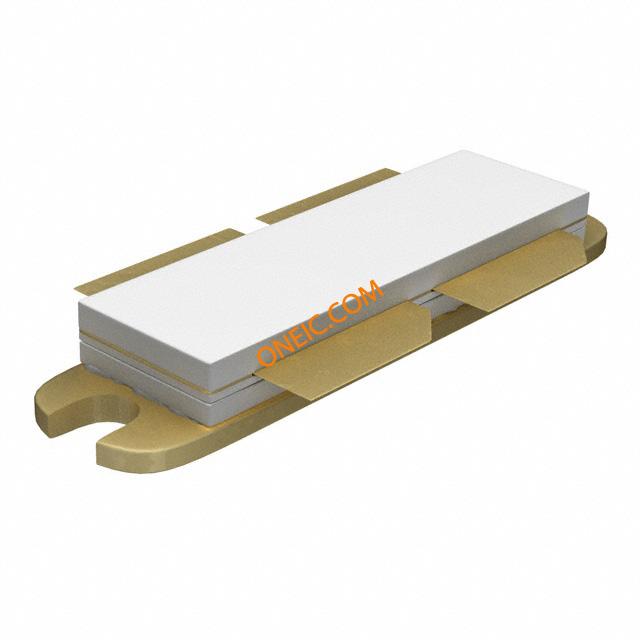

SOT539A
