BLF4G20
RF power transistors for basestation use
Manufacturer： nxp
series introduction
The BLF4G20 Series is a cutting-edge line of LDMOS (laterally diffused metal-oxide-semiconductor) transistors designed to meet the demanding requirements of high-power RF applications. Renowned for their exceptional efficiency, linearity, and ruggedness, the BLF4G20 devices are tailored for use in RF power amplifiers, making them ideal for telecommunications, broadcast transmission, and industrial applications.
One of the standout features of the BLF4G20 Series is its high power output capability, with the transistors providing up to 200 watts of output power. This capability ensures robust performance in various operating conditions, allowing for extended coverage and improved signal integrity in communication systems. The devices utilize advanced LDMOS technology, which enhances thermal performance and reliability, making them suitable for continuous operation in challenging environments.
The design of the BLF4G20 transistors emphasizes compactness and efficiency, featuring a low thermal resistance that facilitates effective heat dissipation. This design characteristic minimizes the need for extensive cooling solutions, thus reducing the overall footprint and complexity of RF amplifier systems. Additionally, the BLF4G20 devices support a wide frequency range, typically from 1.8 GHz to 500 MHz, enabling versatility across multiple applications, including cellular base stations, Wi-Fi systems, and radar equipment.
In terms of suitability, the BLF4G20 Series is ideal for a variety of sectors, including telecommunications, where it can be employed in both uplink and downlink applications, maximizing data throughput and network reliability. Moreover, its robustness makes it a favored choice for broadcast applications, where high performance and durability are paramount. The series also finds practical use in industrial heating and plasma generation systems, showcasing its versatility across diverse fields.
Overall, the BLF4G20 Series represents a significant advancement in RF power technology, offering engineers and designers a reliable solution that combines high performance, efficiency, and adaptability for modern electronic systems.
Images for reference

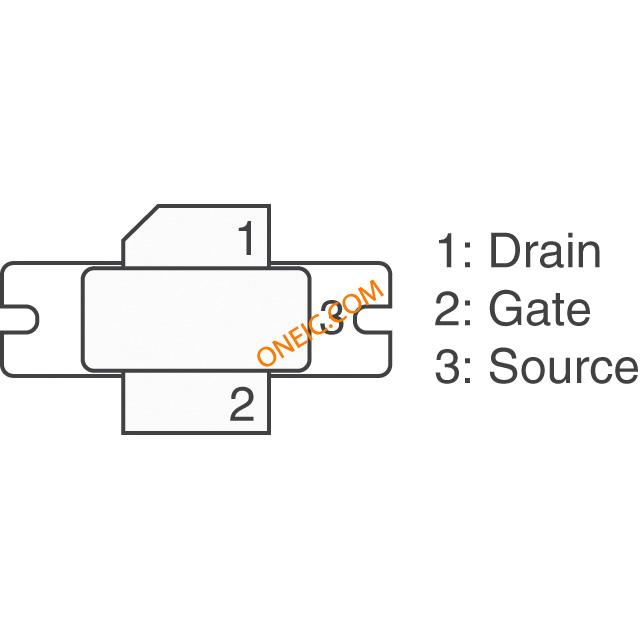

2-LDMOST,SOT-502A
SOT-502A
SOT502B
