BLF1043
RF power transistors in various forms
Manufacturer： ['nxp', 'ampleon']
series introduction
The BLF1043 Series is an advanced line of RF power transistors, meticulously engineered for high-performance applications in the telecommunications and broadcasting sectors. These devices are designed to deliver exceptional efficiency and linearity, making them ideal for use in high-frequency amplification and signal processing tasks. Featuring a robust construction and optimized thermal management characteristics, the BLF1043 Series ensures reliable operation in demanding environments.
Key features of the BLF1043 Series include a high power gain and a wide frequency range, enabling effective amplification of signals while minimizing distortion. The transistors are built using state-of-the-art LDMOS technology, which not only enhances their power handling capabilities but also significantly improves thermal stability and efficiency. With a high breakdown voltage rating, the BLF1043 transistors can operate safely under various load conditions, making them suitable for a range of applications, from industrial RF systems to advanced medical equipment.
The design characteristics of the BLF1043 Series are tailored for ease of integration into existing systems. The compact package size and pin configuration allow for straightforward PCB layouts, reducing the complexity of design and assembly processes. Moreover, these transistors exhibit low intermodulation distortion, making them an excellent choice for linear amplifier applications, including those in cellular base stations and broadcast transmitters.
In terms of suitable use cases, the BLF1043 Series is particularly effective in applications requiring high linearity and efficiency, such as RF amplifiers in telecommunications infrastructure, radar systems, and satellite communication. Additionally, they are well-suited for applications in automotive radar and industrial automation, where reliable performance under varying thermal conditions is crucial.
Overall, the BLF1043 Series stands out as a versatile and high-performing solution for RF amplification needs, providing engineers and designers with the reliability and efficiency required in today’s fast-paced technology landscape.
Images for reference

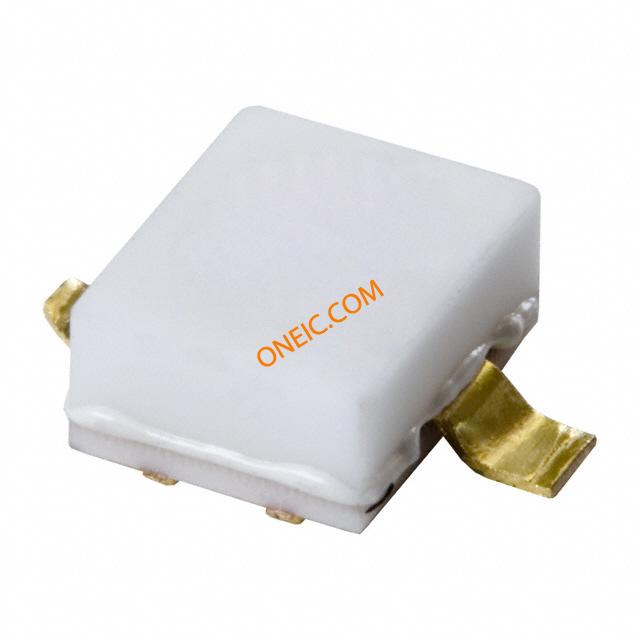

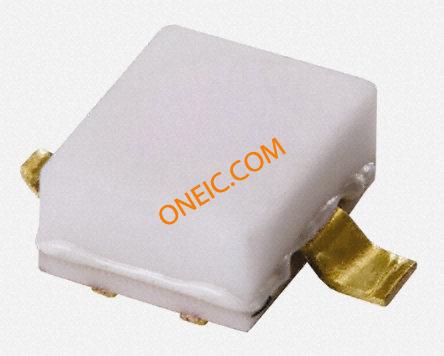

SOT-568A

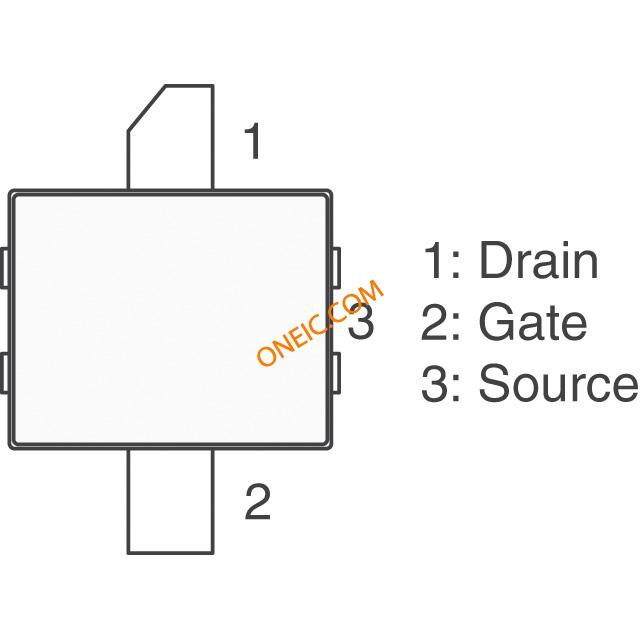

SOT538A
