BDW83C
NPN Darlington transistors for various packages
Manufacturer： ['iscsemi', 'stm', 'central-semiconductor', 'bourns']
series introduction
The BDW83C Series is a robust line of NPN power transistors designed for high-efficiency applications in power amplification and switching circuits. Renowned for their exceptional performance and reliability, these transistors are engineered to handle high current and voltage levels while maintaining thermal stability. With a maximum collector current rating of up to 8A and a collector-emitter voltage rating of 60V, the BDW83C Series is particularly suitable for applications that require robust power handling capabilities, such as motor drives, power supplies, and audio amplifiers.
One of the standout features of the BDW83C Series is its optimized thermal design, which allows for effective heat dissipation. This is critical in high-power applications where maintaining operational integrity under load is paramount. The transistors are housed in a TO-220 package, which not only facilitates easy mounting but also enhances thermal management through the use of heat sinks, ensuring prolonged device lifespan and reliability.
The BDW83C Series is characterized by its low saturation voltage and fast switching capabilities, enabling efficient operation in both linear and switching modes. This makes it an excellent choice for applications ranging from automotive electronics to consumer appliances, where performance and efficiency are essential. Its high gain and dynamic performance also make it suitable for audio applications, allowing for clear sound reproduction in amplifiers and audio processing equipment.
In addition to its suitability for power amplification, the BDW83C Series finds extensive use in industrial automation and control systems, where the need for reliable and efficient transistor solutions is critical. The versatility of these transistors allows them to be employed in a variety of configurations, whether in push-pull amplifier circuits or as part of more complex switching arrangements.
Overall, the BDW83C Series represents a reliable choice for engineers and designers seeking high-performance power transistors capable of meeting the demands of modern electronic systems across multiple industries. With their proven track record of efficiency and durability, these transistors are well-equipped to support a wide range of applications, from consumer electronics to industrial machinery.
Images for reference
TO-247-3

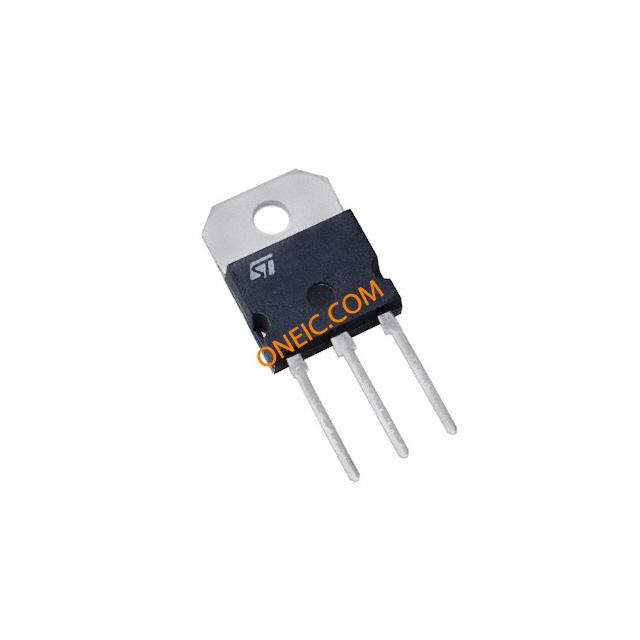

TO-218 Pkg
Image Preview
