BDP950
Infineon PNP transistors in SOT-223 package
Manufacturer： ['infineon', 'rochester']
series introduction
The BDP950 Series is a robust line of high-performance bipolar junction transistors (BJTs) designed for a wide array of applications, particularly suited for power amplification and switching in both analog and digital circuits. Engineered with advanced semiconductor technology, the BDP950 Series delivers exceptional thermal stability, high current gain, and low saturation voltage, making it an ideal choice for demanding electronic applications.
One of the key features of the BDP950 Series is its impressive voltage and current handling capabilities, allowing it to operate efficiently in high-power environments. With a maximum collector-emitter voltage rating and a high continuous collector current capability, these transistors can handle significant loads, making them suitable for applications ranging from audio amplifiers to power supply circuits. The inclusion of a high transition frequency also facilitates fast switching, essential for applications such as RF amplification and digital signal processing.
The design characteristics of the BDP950 Series incorporate a rugged construction that provides enhanced reliability and performance consistency over time. The transistors are housed in a standard TO-220 package, which not only ensures effective heat dissipation but also facilitates easy mounting and integration into various circuit designs. This thoughtful packaging design contributes to the overall robustness of the BDP950, making it suitable for use in harsh environments where thermal management is critical.
In terms of suitable use cases, the BDP950 Series finds its niche in consumer electronics, automotive applications, and industrial equipment. Typical applications include audio amplifiers, motor drivers, and power management systems, where efficiency and reliability are paramount. Furthermore, the versatility of this product series allows it to be utilized in both linear and switching applications, catering to a diverse range of electronic design needs.
Overall, the BDP950 Series stands out as a reliable solution for engineers seeking high-performance transistors that can meet the demands of modern electronic systems, ensuring both efficiency and durability across various industrial applications.

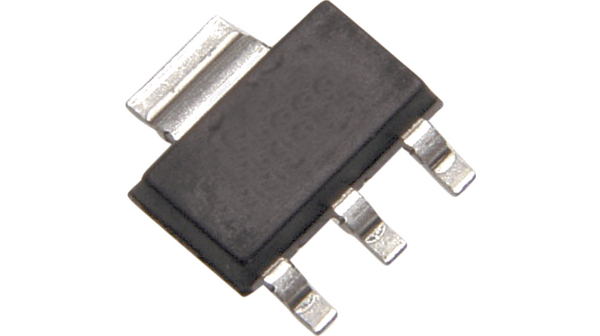

Images for reference
Image Preview
Image Preview
Image Preview
