BD4859
CMOS-based electronic components for RF applications
Manufacturer： ['anaren', 'rohm']
series introduction
The BD4859 Series is a sophisticated line of high-performance voltage regulators designed to meet the demanding requirements of modern electronic applications. These devices feature a low dropout (LDO) design, which allows them to maintain a stable output voltage even when the input voltage is only slightly higher than the output. This characteristic is particularly beneficial in battery-powered devices, where efficient power management is crucial for prolonging battery life and optimizing overall system efficiency.
One of the key features of the BD4859 Series is its wide input voltage range, accommodating voltages up to 30V, which makes it versatile for use in various applications, from consumer electronics to industrial machinery. The series is equipped with excellent load and line regulation, ensuring consistent output performance under varying load conditions. Additionally, the BD4859 offers a low quiescent current, which significantly reduces power consumption during standby mode, making it ideal for energy-sensitive applications.
The design of the BD4859 Series emphasizes compactness and integration, featuring a small footprint that allows for easy placement on densely populated PCBs. The series is available in multiple package options, including SOT-23 and TO-220, catering to diverse thermal and space requirements. This flexibility in packaging enables engineers to select the most suitable option based on their specific application needs.
The BD4859 Series finds its applications across a wide range of industries, including telecommunications, automotive, and consumer electronics. It is particularly well-suited for powering microcontrollers, sensors, and RF modules, where stable voltage supply is paramount. Furthermore, with its robust thermal performance and built-in overcurrent and thermal protection features, the BD4859 Series ensures reliable operation in challenging environments, enhancing the overall durability and longevity of electronic systems.
In summary, the BD4859 Series stands out as a reliable and efficient voltage regulation solution, designed to meet the rigorous demands of contemporary electronics. Its combination of low dropout voltage, wide input range, and compact design makes it an excellent choice for engineers seeking to enhance performance while minimizing power consumption in their designs.
Images for reference

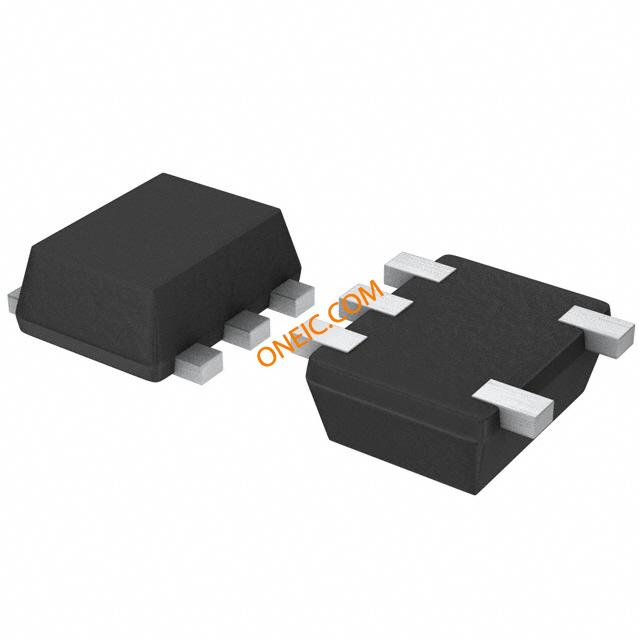

5-VSOF_VSOF5 Pkg
SMP5_SMP5
4-SMD
