BD243C
NPN transistors with 100V, 6A, TO-220
Manufacturer： ['stm', 'freescale', 'bourns', 'iscsemi', 'spc-technology', 'multicomp', 'onsemi', 'fairchild']
series introduction
The BD243C Series is a high-performance NPN power transistor designed for a variety of applications requiring reliable switching and amplification capabilities. Renowned for its robust construction and versatility, the BD243C Series provides an exceptional balance of high current handling, voltage stability, and thermal performance, making it an ideal choice for both industrial and consumer electronics.
Featuring a maximum collector current of 6A and a collector-emitter voltage rating of up to 60V, the BD243C is engineered to handle demanding load conditions with ease. Its high gain characteristics (hFE) ensure efficient signal amplification, while the low saturation voltage minimizes power loss during operation, enhancing overall system efficiency. The transistor is housed in a standard TO-220 package, which not only facilitates easy heat dissipation but also supports straightforward PCB mounting, making it suitable for various circuit designs.
Designed specifically for applications where reliability and performance are critical, the BD243C Series finds its use in a range of industries, including automotive systems, power management circuits, and audio amplification. It excels in functions such as motor control, relay driving, and signal amplification, providing engineers with a flexible solution for both low- and high-frequency applications. The transistor's thermal stability and durability make it especially useful in environments subjected to fluctuating temperatures and mechanical stress, ensuring long-term reliability in real-world conditions.
Additionally, the BD243C Series is compatible with standard driving circuits, allowing for seamless integration into existing designs. With its combination of high current capacity, efficient thermal performance, and ease of use, the BD243C Series stands out as a dependable choice for engineers seeking to enhance the performance and reliability of their electronic systems. Whether in consumer electronics, industrial automation, or automotive applications, the BD243C Series consistently delivers outstanding results, making it a preferred component in modern electronic design.
Images for reference

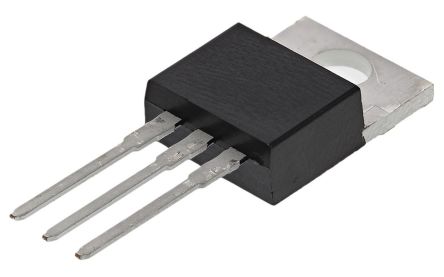

TO-220-3
TO-220-3, TO-220AB
