BCR 402
Linear IC LED drivers for LED lighting
Manufacturer： infineon
series introduction
The BCR 402 Series is a highly versatile line of linear constant current regulators designed specifically for driving LEDs in a wide array of applications. Renowned for their efficiency and reliability, the BCR 402 Series is optimized to provide a constant output current, ensuring consistent brightness levels across LED lighting systems. This series is particularly noteworthy for its ability to operate with a wide input voltage range, making it suitable for various power supply configurations, and supporting applications in both indoor and outdoor lighting environments.
One of the key features of the BCR 402 Series is its integrated thermal protection, which safeguards the device from overheating, thus prolonging its operational lifespan. The series features a simple two-terminal configuration, allowing for easy integration into existing designs without the need for additional components such as resistors or transistors. This simplicity in design not only reduces board space but also enhances the overall reliability of the LED driver circuit, making it an ideal choice for compact lighting solutions.
In terms of design characteristics, the BCR 402 Series exemplifies a robust construction that withstands varying environmental conditions, ensuring stable performance in both commercial and residential settings. The series exhibits excellent thermal management capabilities, which is critical for high-power LED applications, and delivers a stable output current with minimal voltage drop. These attributes make the BCR 402 Series highly suitable for applications such as architectural lighting, automotive lighting, and industrial illumination, where precision and durability are paramount.
The BCR 402 Series finds typical applications in diverse segments, including smart home lighting systems, decorative LED displays, and automotive interior and exterior lighting. Its ability to seamlessly drive multiple LEDs in series or parallel configurations makes it an excellent choice for designers looking to enhance energy efficiency while maintaining superior lighting quality. With a strong focus on performance, safety, and ease of use, the BCR 402 Series stands out as a dependable solution for modern LED lighting needs.
Images for reference

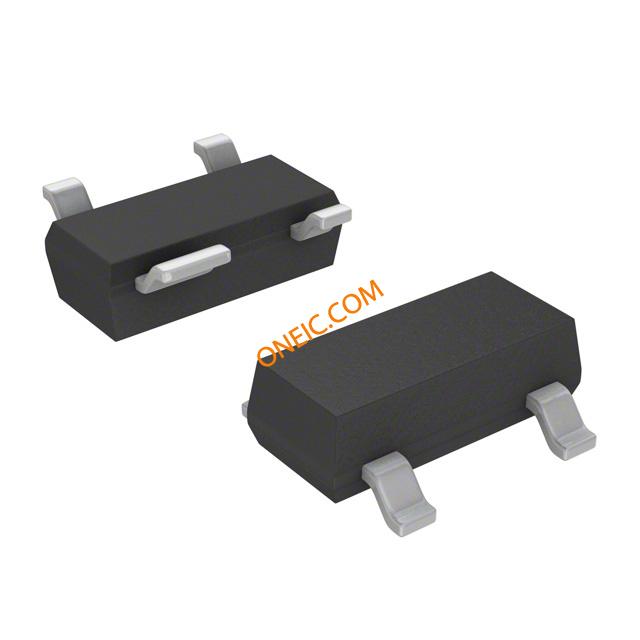

SOT-143R
SC-74, SOT-457
SOT-343 PKG
