BC847PNH
Bipolar transistors in SOT-363 package
Manufacturer： infineon
series introduction
The BC847PNH Series is a line of NPN transistor components renowned for their versatility and reliability in a wide array of electronic applications. Designed with a focus on high efficiency and performance, these transistors are ideally suited for low-power switching and analog signal amplification tasks, catering to the needs of both consumer and industrial electronics.
One of the standout features of the BC847PNH Series is its impressive electrical characteristics, which include a high current gain (hFE) and low saturation voltage, ensuring effective operation even in challenging conditions. With a maximum collector current rating of 100 mA and a collector-emitter voltage of 45 V, these transistors are capable of handling substantial loads while maintaining stable performance. The series also boasts a low noise figure, contributing to superior signal integrity, which is particularly beneficial in audio and RF applications.
The design of the BC847PNH transistors incorporates a compact package size, making them compatible with space-constrained applications. Their small footprint and lightweight nature facilitate integration into densely populated circuit boards, making them ideal for use in portable devices, consumer electronics, and various automotive applications. Furthermore, the transistors exhibit excellent thermal stability, allowing them to function reliably over a wide temperature range, thus ensuring longevity and reduced maintenance requirements in end products.
Typical applications for the BC847PNH Series include audio amplifiers, signal processing circuits, and digital logic circuits, where precision and reliability are paramount. Additionally, they are widely used in power management systems, sensor interfaces, and general-purpose switching applications. The BC847PNH Series stands out as an essential component choice for engineers seeking dependable performance in compact designs, reinforcing its reputation as a go-to solution in modern electronic design.

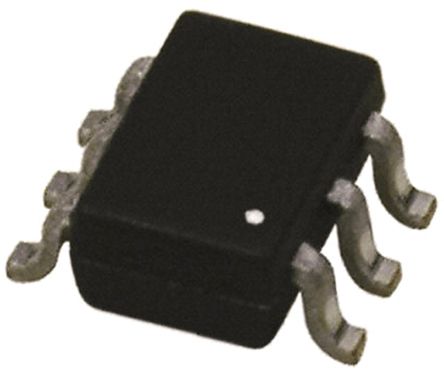

Images for reference
Image Preview
Image Preview
