BC847BLP
NPN bipolar transistors for general use
Manufacturer： ['diodes', 'diodes-zetex', 'diodeszetex']
series introduction
The BC847BLP Series is a highly regarded line of NPN bipolar junction transistors (BJTs) renowned for their versatility and performance in a wide array of electronic applications. Designed with a focus on low noise and high-speed switching characteristics, the BC847BLP transistors are ideal for use in amplifier circuits and switching circuits, delivering exceptional efficiency and reliability.
Key features of the BC847BLP Series include a maximum collector current of 100 mA and a high voltage rating of 45 V, which allows for ample headroom in various circuit designs. The transistors exhibit a low saturation voltage, enhancing their performance in low-power applications, while their high current gain (hFE) provides excellent amplification capabilities. Additionally, the BC847BLP Series is designed to operate effectively over a wide temperature range, making them suitable for demanding environments.
The compact TO-92 package of the BC847BLP Series not only ensures ease of handling and assembly but also contributes to space-saving designs in printed circuit boards (PCBs). This makes the series particularly suitable for applications in consumer electronics, telecommunications, and industrial control systems where board real estate is at a premium.
In terms of typical applications, the BC847BLP transistors are commonly utilized in audio amplifier circuits, signal processing, and as switching elements in various electronic devices. Their low noise characteristics make them especially valuable in high-fidelity audio applications, while their robustness allows them to function reliably in automotive electronics and industrial automation systems.
Overall, the BC847BLP Series stands out due to its combination of high performance, reliability, and versatility, making it an excellent choice for designers and engineers looking to enhance the functionality of their electronic systems across a multitude of industries.
Images for reference
SBR 3-DFN

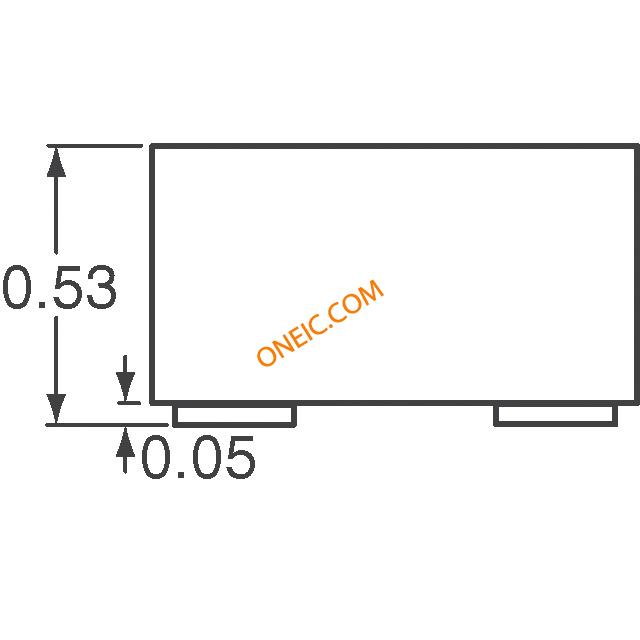

DFN1006-3 Side
DFN1006-3 Bottom
