BAW74

Diodes for general, power, switching applications

Manufacturer: ['fairchild', 'diodes', 'onsemi']

series introduction

The BAW74 series is a highly regarded line of dual Schottky barrier diodes, designed to meet the demands of modern electronic applications with exceptional efficiency and reliability. Featuring low forward voltage drops and fast switching capabilities, the BAW74 series is ideal for high-speed switching and rectification tasks in various electronic circuits. The innovative design utilizes advanced semiconductor technology, ensuring optimal performance and minimal power loss, which is critical for energy-sensitive applications.

One of the standout features of the BAW74 series is its low forward voltage drop, typically around 0.3 V at a current of 1 A. This characteristic not only enhances the power efficiency of the circuits in which it is employed but also contributes to reduced heat generation, making it suitable for high-density environments like mobile devices and compact power supplies. Additionally, the series boasts a high reverse voltage rating, allowing it to withstand voltage spikes and ensuring robust performance in demanding situations.

The BAW74 series diodes are packaged in a compact SOT-23 form factor, which is designed for easy surface mounting and space-saving layouts. This small footprint allows for greater design flexibility in applications where PCB real estate is at a premium. Furthermore, the diodes are rated for a wide operating temperature range, enabling their use in diverse environments, from consumer electronics to automotive applications.

Typical use cases for the BAW74 series include power management circuits, RF applications, and rectification in switch-mode power supplies. They are often found in voltage clamping, signal detection, and high-frequency switching applications, making them indispensable in the design of efficient power converters and signal processing circuits. With their blend of performance, compactness, and reliability, the BAW74 series diodes are an excellent choice for engineers looking to enhance the efficiency and functionality of their electronic designs.

Images for reference

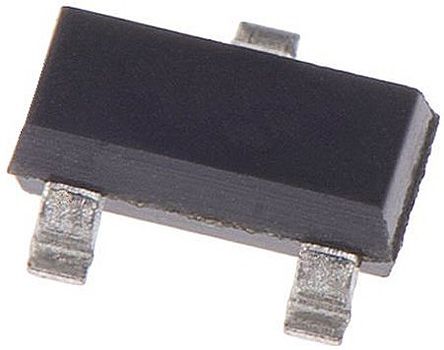

SOT-23-3

SOT-23-3

SOT-23-3

SOT-23-3

Image Preview

Image Preview

related Documents

Datasheets

Partlist

BAW74
BAW74_D87Z
BAW74_Q
BAW74TA
BAW74TC
