BAV99DW
75V switching diodes and diode arrays
Manufacturer： ['diodes', 'diodes-zetex', 'diodeszetex', 'multicomp', 'cj-elec', 'mcc', 'micro-commerical-co']
series introduction
The BAV99DW Series is a highly regarded line of dual general-purpose switching diodes, meticulously engineered to meet the demands of modern electronic applications. These diodes are characterized by their low forward voltage drop and rapid switching speed, making them ideal for high-speed signal processing and efficient power management solutions. With a compact SOT-23 package, the BAV99DW Series is designed for seamless integration into space-constrained environments while delivering outstanding performance.
One of the standout features of the BAV99DW Series is its dual configuration, which allows for the implementation of two diodes within a single package. This design not only optimizes board space but also enhances circuit efficiency by reducing the number of discrete components needed. The diodes exhibit a maximum reverse voltage rating of 45V and a maximum forward current of 200mA, making them suitable for a variety of applications where reliability and robustness are essential.
The BAV99DW Series is particularly well-suited for applications such as signal clamping, rectification, and level shifting in communication systems, consumer electronics, and automated control circuits. Their low reverse recovery time of just a few nanoseconds allows for high-frequency operation, which is critical in today’s fast-paced digital environments. Additionally, these diodes are excellent for use in power supply designs, offering enhanced efficiency and thermal stability.
With a forward current rating that supports a range of applications, the BAV99DW Series finds utility in industries such as automotive, telecommunications, and industrial automation. Their ability to operate reliably under varying conditions makes them a preferred choice for engineers seeking robust solutions for electronic design challenges. Overall, the BAV99DW Series stands out as a versatile component that combines performance, efficiency, and reliability, empowering engineers to create innovative and effective electronic solutions.
Images for reference
SOT-363

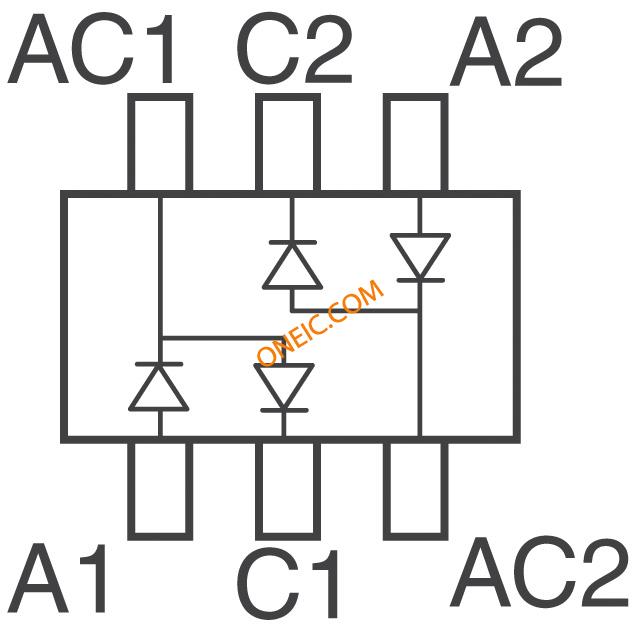

SOT-363 Circuit
SOT-363 PKG
