BAV70WT
Diodes for switching and general purpose use
Manufacturer： ['onsemi', 'smc-diodes', 'mcc', 'micro-commerical-co', 'rochester', 'smc-corp']
series introduction
The BAV70WT Series is a collection of high-performance switching diodes renowned for their reliability and efficiency in a broad spectrum of electronic applications. These diodes are specifically designed for low-voltage and high-speed switching, making them an excellent choice for modern electronic circuits that demand quick response times and minimal power loss. The BAV70WT Series features a dual configuration, allowing for increased versatility in circuit design, while maintaining a compact form factor that optimizes PCB space utilization.
Key characteristics of the BAV70WT Series include a maximum reverse voltage (V_R) of 70V and a forward current (I_F) rating of 200mA. This robust voltage handling capability ensures that the diodes can effectively manage significant levels of stress in various applications without compromising performance. Additionally, the low forward voltage drop (V_F) ensures minimal power loss during operation, enhancing the overall energy efficiency of the device. With a fast switching speed and low capacitance, the BAV70WT Series is particularly suited for applications requiring rapid signal amplification or rectification.
The design of the BAV70WT Series emphasizes not only electrical performance but also thermal stability. These diodes are constructed to withstand a wide temperature range, making them suitable for use in environments subject to thermal fluctuations. The small surface-mount package design aids in thermal management while enabling efficient integration into compact electronic systems.
Typical use cases for the BAV70WT Series include signal switching in communication devices, rectification in power supplies, and as protection devices in various electronic applications. They are extensively utilized in consumer electronics, automotive control systems, and industrial automation, where reliability and speed are paramount. The BAV70WT Series stands out as a versatile and dependable choice for engineers looking to enhance the performance of their electronic designs.
Images for reference

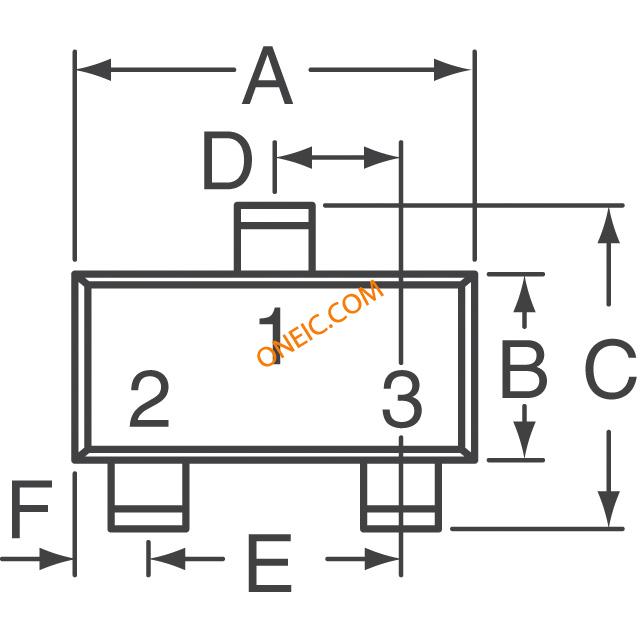

SOT-323

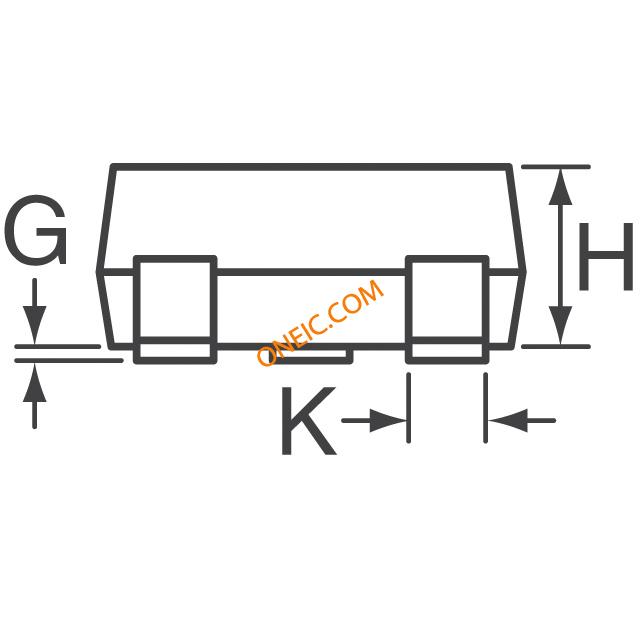

SOT-323 Side
