BAV199T
Diodes for various applications in SOT-523
Manufacturer： ['diodes', 'diodes-zetex', 'diodeszetex', 'nxp', 'multicomp']
series introduction
The BAV199T series is a collection of high-performance, dual general-purpose switching diodes, designed to meet the demanding needs of modern electronic circuits. Known for their versatility, these diodes excel in a range of applications, providing reliable performance in both signal and power switching tasks. The BAV199T series is characterized by its low forward voltage drop, high-speed switching capabilities, and excellent reverse recovery time, making them ideal for high-frequency operations.
The design of the BAV199T series incorporates advanced semiconductor technology, allowing for efficient thermal management and enhanced reliability. With a maximum forward current rating and a reverse voltage capability up to 60V, these diodes can handle a variety of load conditions, ensuring stable operation in diverse environments. Their compact surface-mount package further facilitates integration into space-constrained designs, making them suitable for a wide array of applications in consumer electronics, telecommunications, and industrial automation.
One of the key features of the BAV199T series is its exceptional switching speed, which is crucial in applications such as signal modulation, waveform shaping, and clamping circuits. These diodes are also well-suited for use in power supply circuits, where they can effectively rectify AC signals, enhancing overall energy efficiency. Additionally, the low leakage current and high reliability of this series make it an ideal choice for battery-operated devices, where power conservation is critical.
Typical applications for the BAV199T series include use in audio equipment, RF and microwave communications, and various consumer electronic devices. Their robust performance under varying temperature and voltage conditions ensures they can operate reliably in both standard and extreme environments. With their combination of efficient design, high-speed performance, and versatility, the BAV199T series stands out as a preferred choice for engineers seeking dependable diode solutions in their electronic designs.
Images for reference

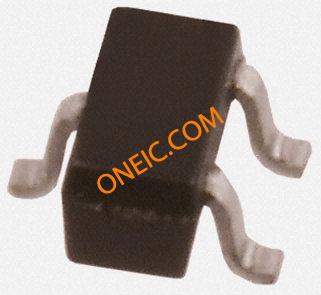

SOT-523

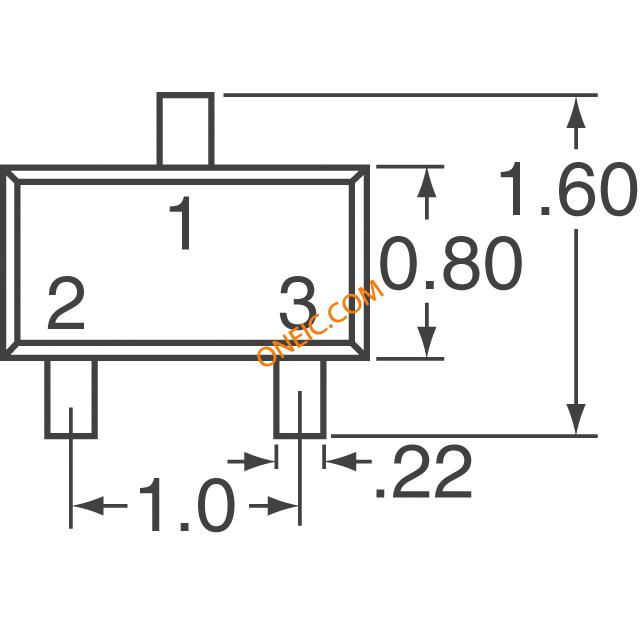

SOT-523 Top
Image Preview
