BAT54WT
Surface mount Schottky diodes for various uses
Manufacturer： ['diodes', 'diodeszetex', 'nxp', 'onsemi', 'smc-diodes', 'mcc', 'micro-commerical-co', 'rochester', 'smc-corp']
series introduction
The BAT54WT Series is a highly versatile line of Schottky diodes, tailored for low-voltage and high-speed switching applications. Renowned for their exceptional performance characteristics, these diodes are designed to meet the demanding requirements of modern electronic circuits. With a forward voltage drop of just 0.3 V at a forward current of 100 mA, the BAT54WT Series minimizes power loss, making it an ideal choice for energy-efficient designs.
One of the key features of the BAT54WT Series is its fast switching speed, with reverse recovery times typically in the nanoseconds range. This characteristic makes these diodes particularly suitable for high-frequency applications, such as RF amplifiers and switch-mode power supplies. The low leakage current further enhances their efficiency, ensuring reliable operation in battery-powered devices and energy-sensitive applications.
The design of the BAT54WT Series incorporates a small footprint, housed in a SOT-23 package, which allows for easy integration into space-constrained circuits. This compact design is particularly beneficial in applications such as smartphones, tablets, and other portable electronics where real estate on the PCB is at a premium. Additionally, the series is capable of handling reverse voltages up to 30 V, offering flexibility for a variety of circuit configurations.
Typical applications for the BAT54WT Series include rectification in power supply circuits, clamping in surge protection devices, and signal demodulation in communication systems. Their reliability and robust performance make them a favored choice in consumer electronics, automotive electronics, and industrial automation systems. As electronic devices continue to evolve towards greater efficiency and compactness, the BAT54WT Series stands out as a crucial component for engineers seeking to optimize their designs while maintaining high standards of performance and reliability.
Images for reference
SOT-323

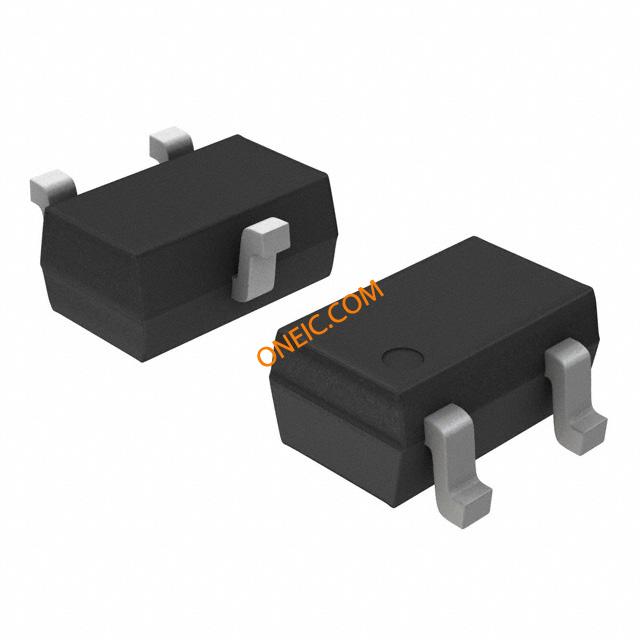

SC-70-3_419AB-01
