BAT54TW
Schottky diodes in SOT-363 package for various applications
Manufacturer： ['diodes', 'diodes-zetex', 'diodeszetex', 'multicomp', 'mcc', 'micro-commerical-co', 'panjit']
series introduction
The BAT54TW Series is a family of low-voltage, dual Schottky barrier diodes that are engineered for high-speed switching applications and optimized for low power consumption. These diodes are characterized by their small SOT-23 package, which allows for a compact footprint while maintaining excellent thermal performance. With a forward voltage drop as low as 0.3V, the BAT54TW diodes minimize energy loss during operation, making them an ideal choice for battery-operated devices and energy-efficient designs.
One of the standout features of the BAT54TW Series is its versatility. The diodes are designed to handle reverse voltages of up to 30V and can accommodate high-speed switching frequencies, making them suitable for diverse applications including RF signal detection, signal clipping, and rectification in low-voltage power supplies. The series also features a low reverse current, ensuring minimal leakage during operation, which is crucial for maintaining the efficiency of portable electronics.
The compact design and robust performance of the BAT54TW Series make it particularly well-suited for applications in consumer electronics, such as smartphones, tablets, and wearables. Additionally, these diodes are widely adopted in automotive circuits where reliability and efficiency are paramount, as well as in industrial devices that require durable components capable of operating under varying environmental conditions.
Engineered for high-performance applications, the BAT54TW Series is an excellent choice for engineers looking to enhance the efficiency and reliability of their designs without compromising on space. Its combination of low power consumption, rapid switching capability, and compact size makes it a valuable component in the development of next-generation electronic devices across a range of industries.
Images for reference
SOT-363

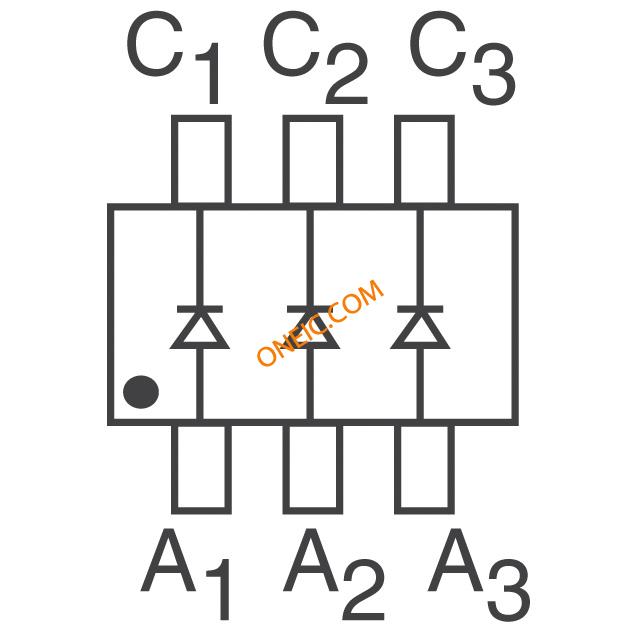

SOT-363 Circuit
SOT-363 PKG
