BAT54S-7
Schottky diodes in SOT-23 for various uses
Manufacturer： ['diodes', 'multicomp', 'diodes-zetex', 'diodeszetex']
series introduction
The BAT54S-7 Series is a range of high-performance Schottky diodes designed for a variety of low-voltage applications, recognized for their fast switching capabilities, low forward voltage drop, and compact packaging. These diodes feature a low reverse recovery time, making them ideal for use in high-frequency switching applications, where efficiency and responsiveness are paramount. The BAT54S-7 Series operates with a maximum forward current rating of 200 mA and a reverse voltage rating of up to 30 V, providing flexibility for various circuit designs while ensuring consistent performance under load.
Designed with a small SOT-23 package, the BAT54S-7 Series is optimized for space-constrained environments, making it particularly suitable for modern electronic devices that require compact component layouts. This series is characterized by its ability to minimize power loss, enabling enhanced energy efficiency in battery-operated devices. The low forward voltage drop of the BAT54S-7 diodes ensures minimal heat generation, which contributes to longer device lifespans and increased reliability.
Commonly used in applications such as power management, signal rectification, and radio frequency (RF) systems, the BAT54S-7 Series excels in both consumer electronics and industrial applications. Typical use cases include use in smartphones, tablets, and other portable devices, where efficient power conversion is critical. Additionally, these diodes are frequently employed in circuit protection schemes to prevent reverse polarity damage, as well as in DC-DC converters and solar inverters, where their fast response times are vital for optimal performance.
Engineered to meet the demands of contemporary electronic designs, the BAT54S-7 Series stands out for its combination of efficiency, speed, and compactness, making it an essential component for engineers looking to enhance the performance and reliability of their electronic circuits.
Images for reference
SOT23

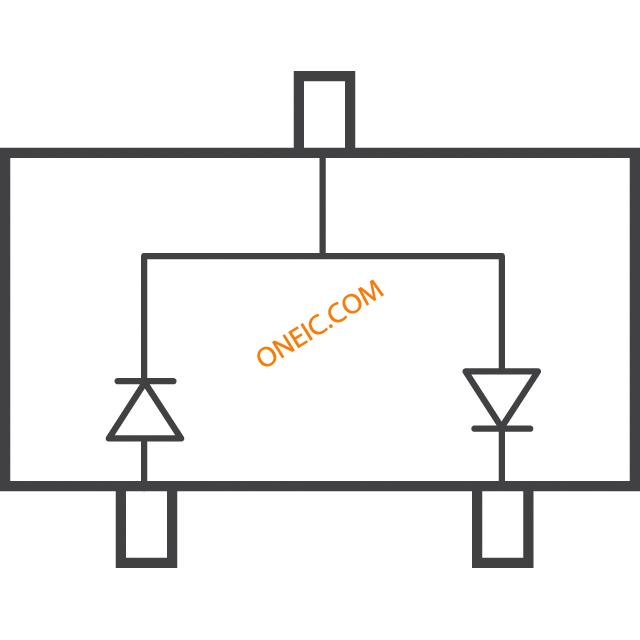

3 Pin Circuit
