BAT54DW
Schottky diodes in SOT-363 package
Manufacturer： ['diodes', 'micro-commerical-co', 'diodes-zetex', 'diodeszetex']
series introduction
The BAT54DW Series is a distinguished line of Schottky barrier diodes, engineered to deliver exceptional performance in a wide array of electronic applications. This series is characterized by its low forward voltage drop and rapid switching capabilities, which make it an ideal choice for applications requiring high efficiency and minimal energy loss. With a reverse voltage rating of up to 30V and a forward current capacity of 200mA, the BAT54DW Series provides versatility and reliability in various circuit configurations.
Designed with a compact SOT-23 package, the BAT54DW Series promotes space-saving solutions in modern electronic designs. The small footprint of these diodes makes them particularly suitable for densely packed circuit boards found in mobile devices, consumer electronics, and automotive systems. Their robust construction ensures durability and longevity, even in challenging thermal and electrical environments.
One of the key features of the BAT54DW Series is its fast switching speed, which is critical for applications such as high-frequency rectification, signal processing, and RF applications. This capability is complemented by low leakage current, which enhances overall circuit efficiency and prolongs battery life in portable devices. These diodes are particularly effective in power management circuits, where they can be used for reverse polarity protection, clamping applications, and as freewheeling diodes in inductive loads.
Typical applications of the BAT54DW Series span a wide range of industries, including telecommunications, consumer electronics, and automotive. In telecommunications, they are employed in signal routing and protection circuits, ensuring reliable data transmission. In consumer electronics, the diodes are often utilized in power supply circuits and battery management systems, optimizing performance and extending operational life. Furthermore, in automotive applications, the BAT54DW Series can be integrated into various control systems, enhancing the efficiency and reliability of electronic components in vehicles.
In summary, the BAT54DW Series stands out as a versatile and efficient solution for modern electronic designs, offering a blend of compact size, high performance, and exceptional reliability. Its suitability for a broad spectrum of applications makes it an invaluable component in today’s high-tech landscape.
Images for reference
SOT-363

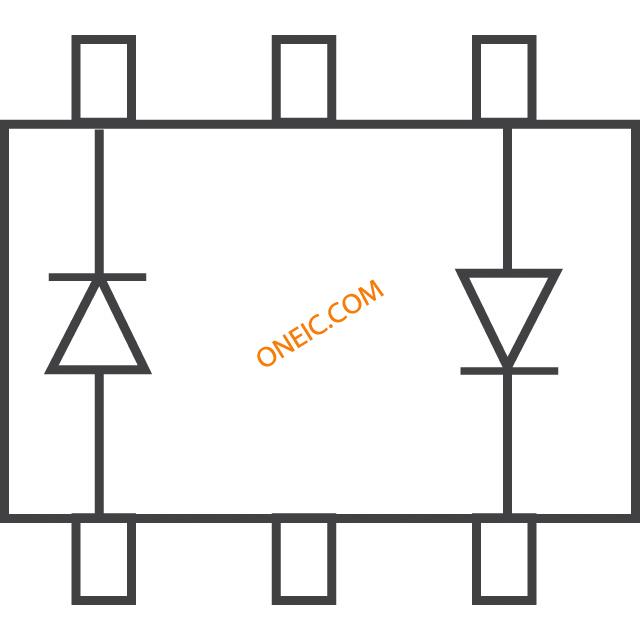

6 Pin Circuit
