BAT54C-7
Schottky and ultrafast recovery diodes in SOT-23
Manufacturer： ['diodes', 'multicomp', 'diodes-zetex', 'diodeszetex']
series introduction
The BAT54C-7 series is an advanced lineup of dual low voltage Schottky diodes, engineered to deliver exceptional performance in a wide range of applications. Renowned for their low forward voltage drop and rapid switching capabilities, these diodes are tailored for efficient power management and signal routing in various electronic circuits. The BAT54C-7 series is particularly distinguished by its small SOT-23 package, which enables designers to maximize space efficiency in compact electronic devices without compromising on performance.
One of the key features of the BAT54C-7 series is its low forward voltage drop, typically around 0.3V at 100mA. This characteristic minimizes power loss, making these diodes ideal for battery-operated devices where energy efficiency is paramount. The series also boasts a reverse voltage rating of up to 30V, providing robust performance in diverse circuit configurations. Their fast switching speed, with a typical recovery time of just a few nanoseconds, allows for effective operation in high-frequency applications, reducing signal distortion and improving overall system efficiency.
Designed with versatility in mind, the BAT54C-7 series is suitable for various use cases, including rectification, clamping, and protection circuits. They excel in applications such as power management in portable electronics, automotive electronics, and telecommunications devices. Their low leakage current further enhances their suitability for energy-sensitive applications, ensuring minimal loss during standby modes.
Typical applications of the BAT54C-7 series extend to power supply circuits, where they are used for voltage regulation and reverse polarity protection. Additionally, they are commonly implemented in RF applications for signal mixing and detection, as well as in data communication systems, where fast switching and low noise are crucial. Overall, the BAT54C-7 series stands out as a reliable choice for engineers seeking efficient, high-performance diode solutions for modern electronic designs.
Images for reference
SOT23

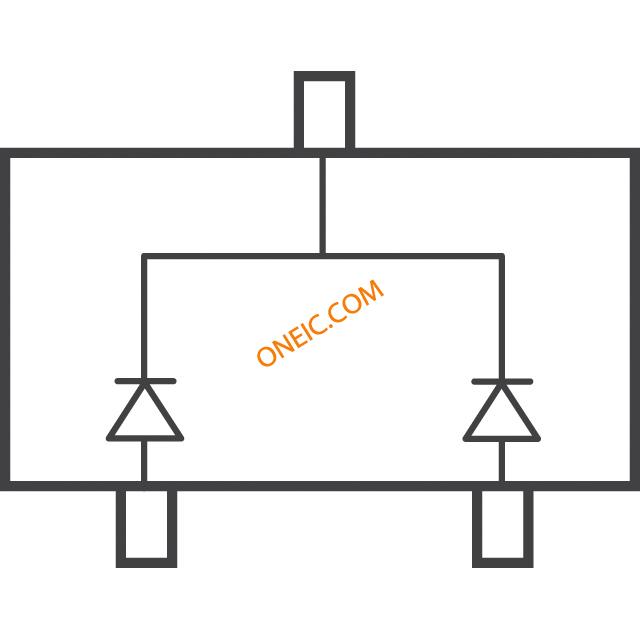

3 Pin Circuit
