BAT54-7
Surface mount Schottky diodes for various uses
Manufacturer： ['diodes', 'multicomp', 'diodes-zetex', 'diodeszetex']
series introduction
The BAT54-7 Series is a collection of low-voltage, dual-gate Schottky diodes designed to meet the demands of modern electronic circuits that require high-speed switching and low forward voltage drop. This series is particularly valued in applications where efficiency and thermal performance are critical. The BAT54-7 diodes are constructed using advanced semiconductor technology, ensuring minimal leakage current and fast response times, which are essential for high-frequency applications.
One of the standout features of the BAT54-7 Series is its low forward voltage drop, typically around 0.3V at 10mA, which translates to reduced power loss and increased efficiency in battery-operated devices. The series is capable of handling reverse voltage ratings of up to 30V, making them suitable for a wide range of applications, from signal processing to power management. The diodes are compact, housed in a small SOT-23 package, allowing for efficient use of board space in designs where size constraints are a consideration.
The design of the BAT54-7 Series focuses on versatility and adaptability, making it ideal for various use cases, including rectification in power supplies, clamping applications, and as part of signal detection circuits. Their fast switching capability enhances performance in RF applications, while their low capacitance ensures minimal signal distortion, making them a popular choice in communication devices and consumer electronics.
In industrial applications, the BAT54-7 Series plays a vital role in protecting sensitive components from voltage spikes and transient events, thereby enhancing the reliability of the overall system. Their robust performance in high-frequency environments makes them suitable for use in automotive electronics, portable devices, and IoT applications, where compact and efficient components are essential. Overall, the BAT54-7 Series represents a reliable choice for engineers seeking a combination of performance, efficiency, and compactness in their electronic designs.
Images for reference
SOT23

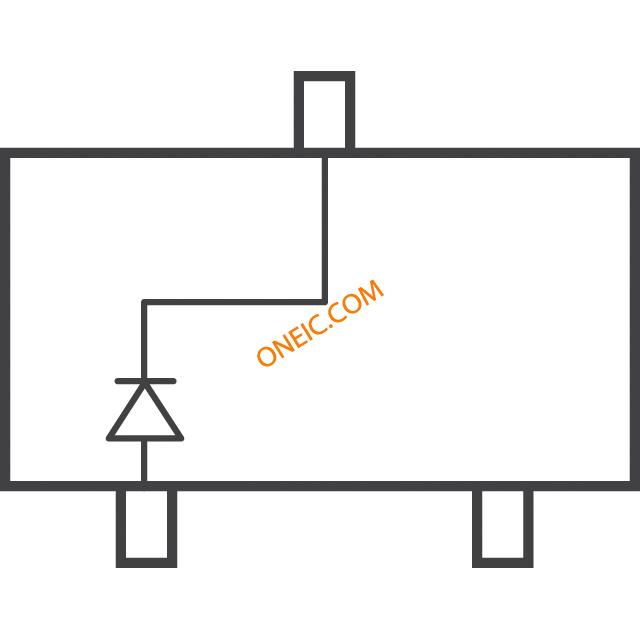

3 Pin Circuit
Image Preview
