BAS16HT
General purpose, power, switching diodes in SOD-323
Manufacturer： ['diodes', 'lrc', 'onsemi', 'fairchild', 'rochester']
series introduction
The BAS16HT Series is a collection of high-speed switching diodes designed to meet the demanding requirements of modern electronic applications. Renowned for their exceptional performance and reliability, these diodes are optimized for low forward voltage drop, high-speed switching capabilities, and robust reverse breakdown voltage, making them ideal for a variety of circuit designs.
A key feature of the BAS16HT Series is its ability to operate at a maximum repetitive reverse voltage of 45V, coupled with a low forward voltage drop of approximately 0.6V at a forward current of 1A. This characteristic significantly enhances energy efficiency in applications where power loss must be minimized. The diodes are also engineered for rapid switching speeds, with a typical reverse recovery time of just 4 nanoseconds, making them suitable for high-frequency circuits, including RF applications and pulse circuits.
The design of the BAS16HT Series incorporates a compact SMD package, which allows for easy integration into space-constrained PCB designs. This design characteristic is particularly advantageous in the consumer electronics segment, where the trend toward miniaturization is pervasive. The series is also characterized by its thermal stability, with a maximum junction temperature of 150°C, which ensures reliable performance even under high-temperature conditions.
The BAS16HT Series finds its applications in a wide range of industries. In telecommunications, these diodes are used for signal processing and data communication systems, where high-speed switching is critical. In automotive applications, they serve as protection devices, safeguarding sensitive components from voltage spikes. Additionally, they are widely utilized in power supply circuits, rectifiers, and various consumer electronics, including smartphones, tablets, and laptops.
Overall, the BAS16HT Series stands out as a versatile solution for engineers seeking reliable, high-performance diodes that excel in both speed and efficiency, making them an excellent choice for a broad spectrum of electronic applications.
Images for reference

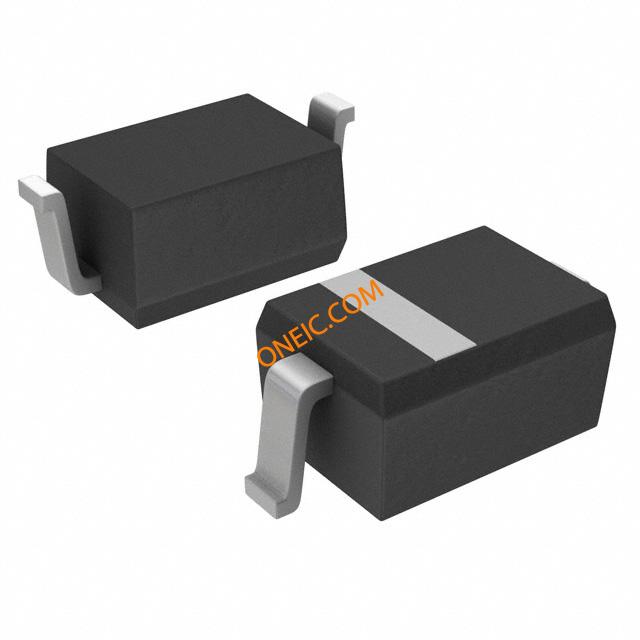

SOD-323_477
