B57560G502
NTC thermistors with various specifications
Manufacturer： epcos
series introduction
The B57560G502 Series is a distinguished line of NTC thermistors designed for precise temperature measurement and control in various electronic applications. Renowned for their exceptional sensitivity and reliability, these thermistors utilize a ceramic material composition that ensures accurate resistance changes in response to temperature variations, enabling them to deliver precise thermal readings across a wide range of environments.
One of the key features of the B57560G502 Series is its broad operating temperature range, typically spanning from -40°C to +125°C. This enables the thermistors to function effectively in both low and high-temperature applications, making them suitable for diverse industrial, automotive, and consumer electronics uses. The series is characterized by its negative temperature coefficient (NTC), which means that as the temperature increases, the resistance decreases, providing a straightforward and efficient means of temperature detection.
The design of the B57560G502 Series emphasizes robustness and compactness, allowing for easy integration into various circuit designs. These thermistors are available in multiple package types, making them versatile for different mounting requirements. With low thermal mass and rapid response times, they are ideal for applications that require quick temperature adjustments, such as HVAC systems, medical devices, and environmental monitoring systems.
In terms of typical applications, the B57560G502 Series is widely used in temperature sensing and control systems in automotive applications, including engine temperature monitoring and climate control systems. Furthermore, their reliability and accuracy make them a preferred choice for household appliances, such as refrigerators and ovens, where maintaining optimal temperature is crucial for performance and safety. Additionally, they find applications in industrial automation systems for process control, ensuring that equipment operates within safe temperature limits to extend lifespan and efficiency.
Overall, the B57560G502 Series stands out for its combination of precision, reliability, and adaptability, making it an essential component for engineers and designers looking to implement effective temperature management solutions across various sectors.
Images for reference

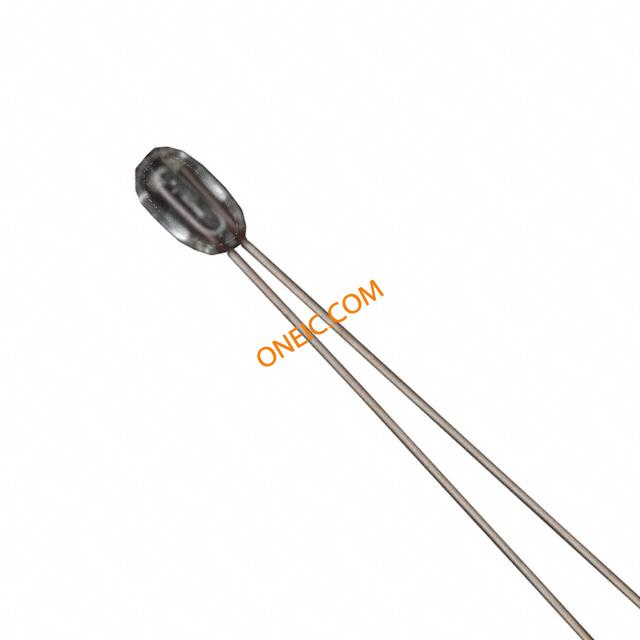

B57560G0502F000

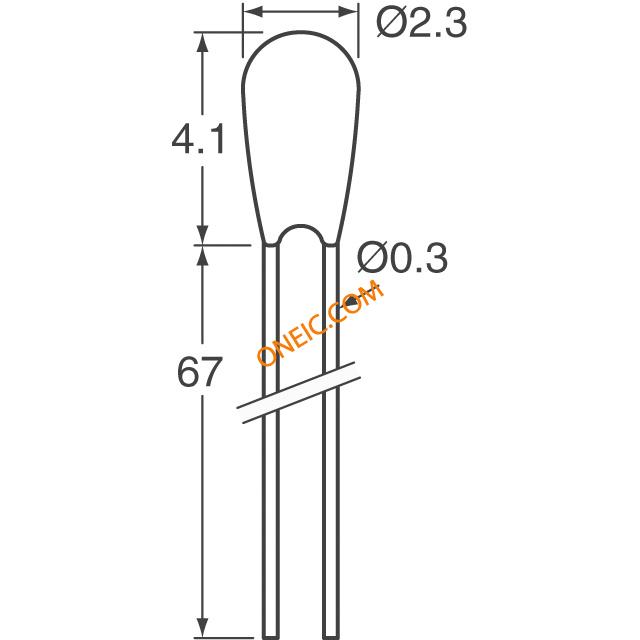

B57560G0x0xF000 Side
Image Preview
