B340B
3A 40V Schottky diodes for surface mount
Manufacturer： ['diodes', 'diodes-zetex', 'diodeszetex', 'multicomp', 'world-products']
series introduction
The B340B Series is a high-performance Schottky diode line, engineered for a variety of applications requiring efficient rectification and switching capabilities. Known for their low forward voltage drop and rapid switching speeds, these diodes are designed to optimize power efficiency in electronic circuits. The B340B Series features a maximum repetitive reverse voltage of 40V and a forward current rating of up to 3A, making them suitable for both low- and medium-power applications.
One of the key characteristics of the B340B Series is its exceptional thermal stability, which is achieved through its advanced construction and materials. The diodes are encapsulated in a robust DO-214AA package, ensuring reliable performance even in harsh environmental conditions. This design not only contributes to the durability of the components but also facilitates effective heat dissipation, thereby enhancing overall reliability and longevity in various applications.
The B340B Series is particularly well-suited for power supply circuits, including switch-mode power supplies (SMPS), where efficient rectification is crucial. These diodes are commonly employed in applications such as battery chargers, LED lighting, and consumer electronics, providing superior performance in both high-frequency switching operations and low-voltage applications. Their low leakage current further contributes to energy savings, making them an ideal choice for energy-efficient designs.
Additionally, the B340B Series demonstrates versatility in automotive applications, where reliability and thermal performance are essential. They can be effectively used in automotive power management systems, aiding in the efficient conversion of power and ensuring stable operation under varying load conditions. Industries such as telecommunications, industrial automation, and renewable energy systems also benefit from the integration of B340B diodes, leveraging their high efficiency and compact form factor for improved system performance.
In summary, the B340B Series stands out as a reliable solution for modern electronic designs, offering low forward voltage drop, high current capability, and robust thermal performance. Its extensive application range and efficient characteristics make it a preferred choice for engineers seeking to enhance the performance and reliability of their electronic systems.
Images for reference

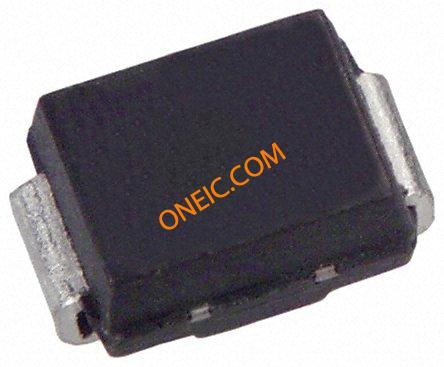

31-SMB, DO214AA
