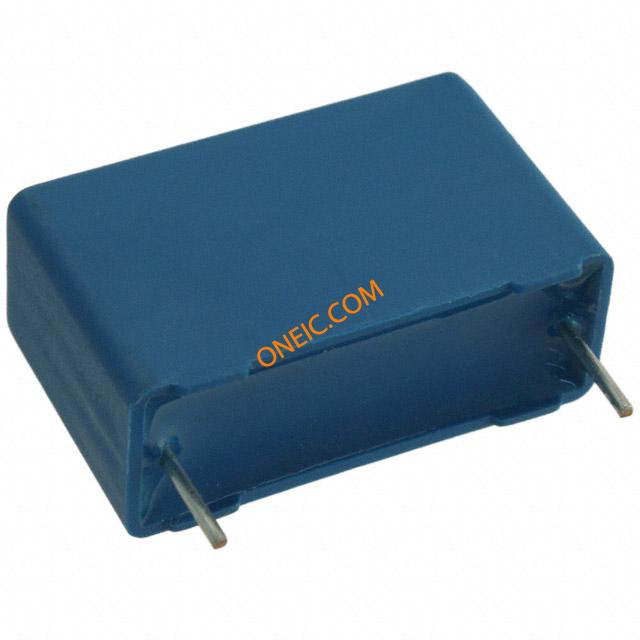

B32923C3684
0.68uF 305VAC X2 film capacitors in various forms
Manufacturer： ['epcos', 'tdk']
series introduction
The B32923C3684 Series is a distinguished line of film capacitors that stands out for its exceptional performance and versatility in various electronic applications. These capacitors are designed to meet the rigorous demands of today's electronic environments, providing reliable functionality in a compact form factor. With a capacitance value of 680nF and a voltage rating of 400V, the B32923C3684 Series is well-suited for applications that require stable performance and durability under varying conditions.
One of the key features of the B32923C3684 Series is its robust construction, utilizing high-quality polypropylene film as the dielectric material. This design choice provides excellent electrical characteristics, including low equivalent series resistance (ESR) and low self-inductance, which are critical for high-frequency applications. Additionally, the capacitors exhibit minimal dielectric absorption, ensuring precise performance in timing and filtering applications.
The B32923C3684 Series is specifically engineered for use in power electronics, including power supplies, motor drives, and renewable energy systems. Its high voltage rating allows it to handle challenging electrical environments, making it ideal for industrial automation, telecommunications, and automotive applications. The capacitors are also suitable for use in snubber circuits, where they help protect sensitive components from voltage spikes and transients.
In terms of design characteristics, the B32923C3684 capacitors are available in a compact package, facilitating easy integration into various circuit layouts. Their symmetrical construction not only enhances their reliability but also ensures consistent performance across different orientations. Moreover, these capacitors are characterized by their excellent temperature stability, with a wide operating temperature range, making them suitable for both indoor and outdoor applications.
Overall, the B32923C3684 Series represents a perfect blend of technology and reliability, providing engineers and designers with the confidence they need for their high-performance applications. Whether used in consumer electronics, industrial machinery, or renewable energy systems, these capacitors are a dependable choice for demanding environments, ensuring long-lasting performance and efficiency.
Images for reference
Y(1,2), X(1,2) Series Side 2
Y(1,2), X(1,2) Series Side 1
B32923 Series
