B32559C6103
Film capacitors for various applications
Manufacturer： epcos
series introduction
The B32559C6103 Series comprises a range of high-quality film capacitors, specifically engineered for demanding applications in various electronic circuits. This series is characterized by its robust construction, featuring metallized polypropylene technology that ensures excellent electrical performance, high insulation resistance, and low self-inductance. The B32559C6103 capacitors are designed to operate effectively in a wide temperature range, typically from -40°C to +85°C, making them suitable for both industrial and consumer applications where reliability is paramount.
One of the key features of the B32559C6103 Series is its impressive capacitance range, which allows for flexible design choices depending on the application requirements. With a capacitance value of 10 µF and a voltage rating of 250 V AC, these capacitors are particularly adept at handling AC signals, providing stable performance in power supply circuits, snubber circuits, and motor drives. The series also boasts a low equivalent series resistance (ESR), which contributes to reduced energy losses and improved overall efficiency in high-frequency applications.
In terms of design characteristics, the B32559C6103 capacitors are housed in compact, rectangular cases that facilitate easy integration into various layouts. Their lead spacing options and standardized footprint align with industry norms, ensuring compatibility with existing designs while promoting ease of assembly in automated processes. Additionally, the capacitors are designed to meet stringent safety standards, including UL and EN certifications, which further enhances their suitability for use in critical applications.
Common applications for the B32559C6103 Series include power electronics, lighting systems, renewable energy systems, and audio equipment. Their versatility makes them an ideal choice for engineers looking to enhance the performance and reliability of their designs in sectors such as automotive, telecommunications, and industrial automation. Overall, the B32559C6103 Series stands out for its combination of high performance, reliability, and adaptability, making it a valuable addition to any electronic design engineer's toolkit.
Images for reference

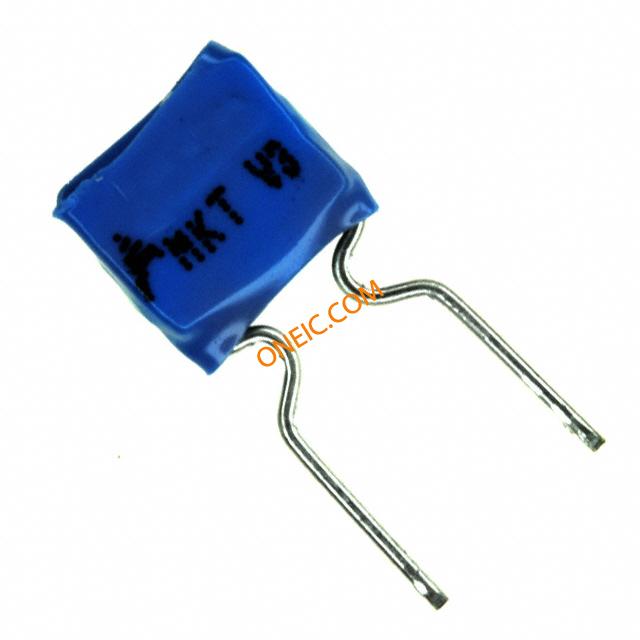

B32559C6103K000

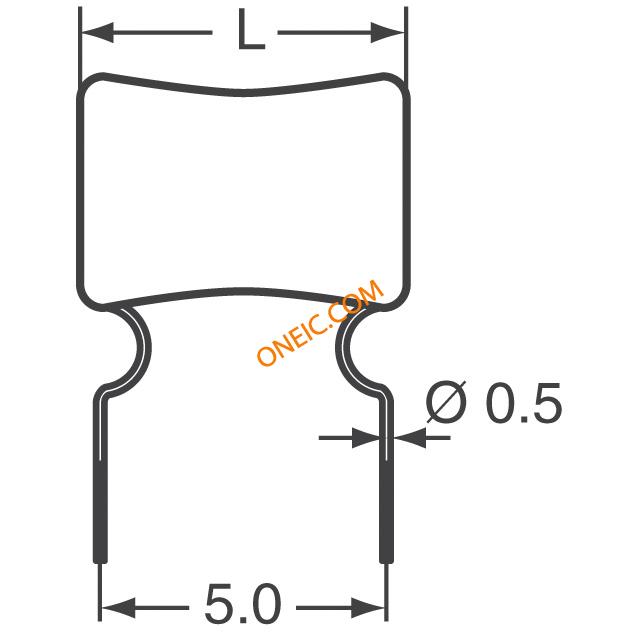

Mini Blue Series Side 1

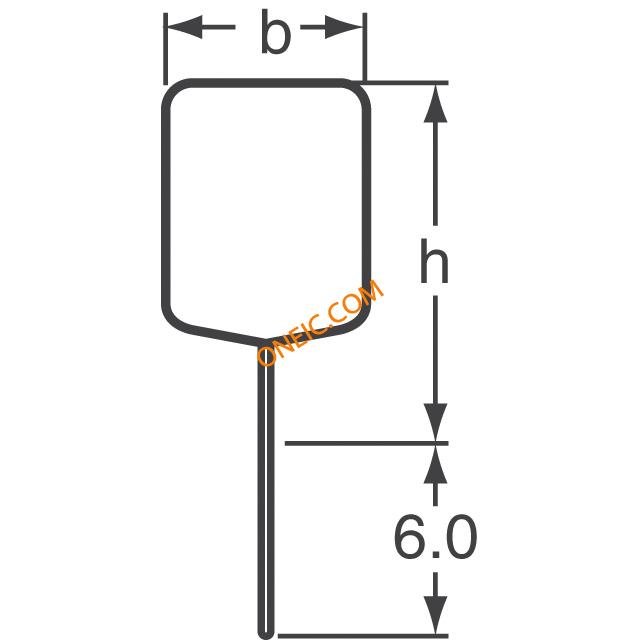

Mini Blue Series Side 2
