AWHW40
Low - profile 40 - position connectors
Manufacturer： assmann
series introduction
The AWHW40 Series is a cutting-edge line of high-performance wire-to-board connectors, meticulously engineered to meet the demands of modern electronic applications. These connectors stand out for their robust design, ensuring secure and reliable electrical connections in various environments. Featuring a low-profile design, the AWHW40 Series optimizes space utilization while maintaining high current carrying capabilities, making them an ideal choice for compact devices.
One of the key features of the AWHW40 Series is its versatility in accommodating a wide range of wire sizes, typically from 24 AWG to 16 AWG, which allows for flexibility in design and application. The connectors are available in both vertical and horizontal configurations, providing designers with options to fit specific layout requirements. The series also incorporates a positive locking mechanism that enhances connection integrity, minimizing the risk of unintentional disconnection in high-vibration applications.
Engineered for durability, the AWHW40 Series connectors utilize high-quality materials that ensure resistance to harsh environmental factors, including moisture and dust. With rated temperatures ranging from -40°C to +105°C, these connectors are capable of performing reliably in both indoor and outdoor applications. Additionally, the series supports various plating options to enhance corrosion resistance and electrical performance, ensuring longevity in diverse operating conditions.
The AWHW40 Series is particularly well-suited for a broad spectrum of industries, including automotive, industrial automation, telecommunications, and consumer electronics. Typical applications range from connecting power supplies in automotive systems and interfacing sensors in industrial machinery to facilitating communication in telecommunications equipment. Whether for power distribution or signal integrity, the AWHW40 Series delivers outstanding performance, making it a trusted choice for engineers seeking reliability and efficiency in their designs.
In summary, the AWHW40 Series combines innovative design, robust construction, and application flexibility, making it an essential component for modern electronic systems that demand high performance and reliability.
Images for reference

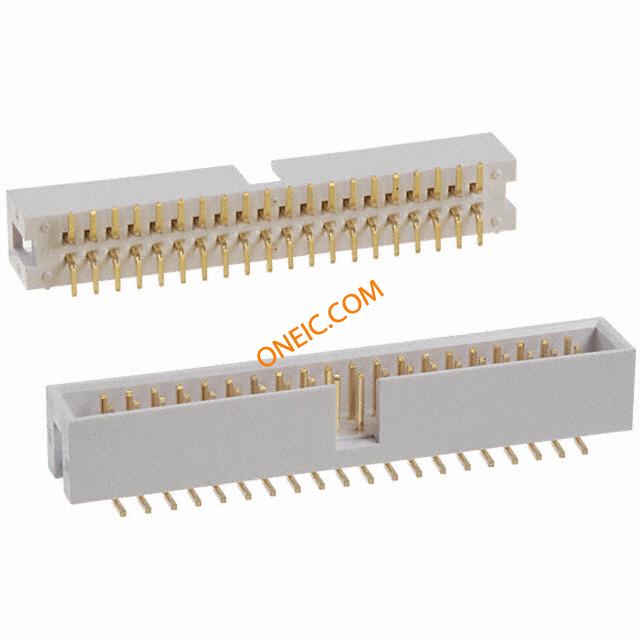

AWHW40-G-SMD-R

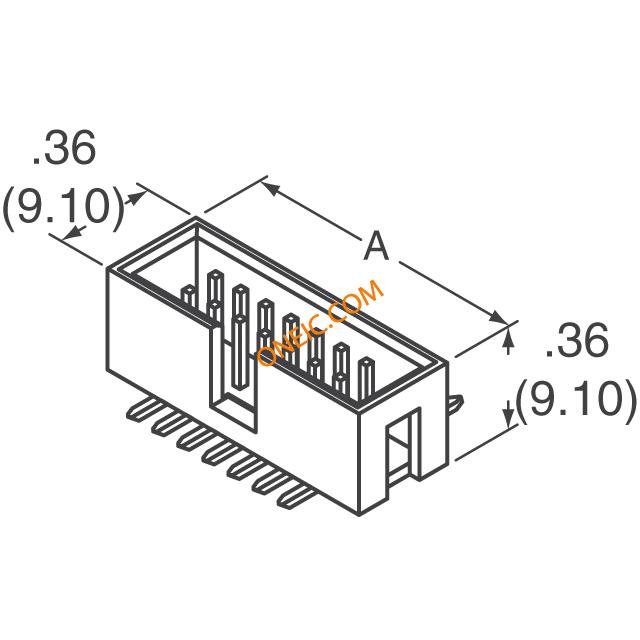

AWHW Series SMT

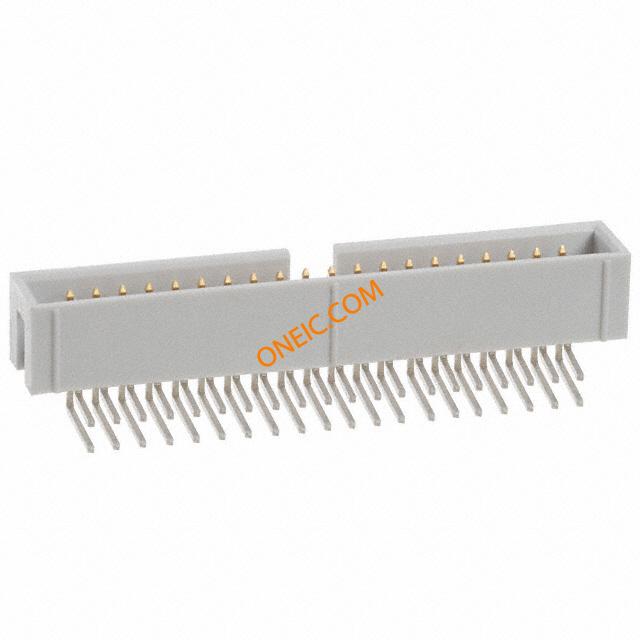

AWHW40A-0202-T-R, AWHW40A-0102-T-R
